1. First Order Transient Circuits [25pt] Analyze the response of IL(t) when the switch opens at t = 0s. Notice the 9 Vol

Post by answerhappygod »

1 First Order Transient Circuits 25pt Analyze The Response Of Il T When The Switch Opens At T 0s Notice The 9 Vol 1
1 First Order Transient Circuits 25pt Analyze The Response Of Il T When The Switch Opens At T 0s Notice The 9 Vol 1 (37.02 KiB) Viewed 25 times

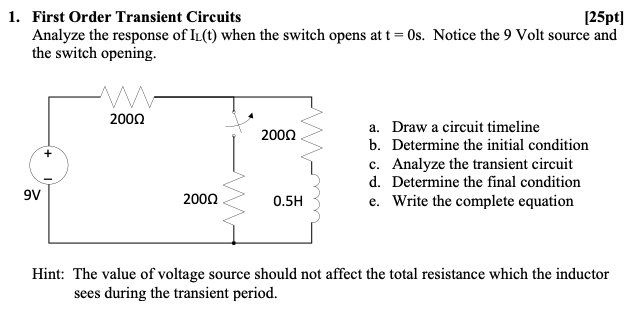

1. First Order Transient Circuits [25pt] Analyze the response of IL(t) when the switch opens at t = 0s. Notice the 9 Volt source and the switch opening. 9V M 2000 200Ω 200Ω 0.5H a. Draw a circuit timeline b. Determine the initial condition c. Analyze the transient circuit d. Determine the final condition e. Write the complete equation Hint: The value of voltage source should not affect the total resistance which the inductor sees during the transient period.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
