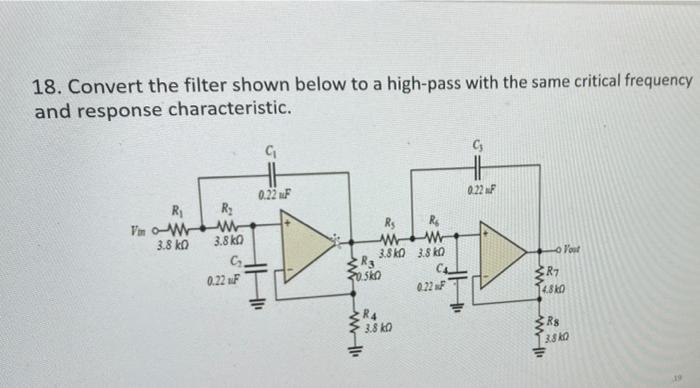

18. Convert the filter shown below to a high-pass with the same critical frequency and response characteristic. Vin R₁ 3.8 k R₂ 3.8 k G₂. 0.22 F G₁₂ 0.22 F ww R3 Sosko Rs R₂ ww 3.8k0 3.8 k www-ll 3.8 k 0.22 F C₂ 0.22 F - Yout R7 4.8K0 Rs 3.8 k

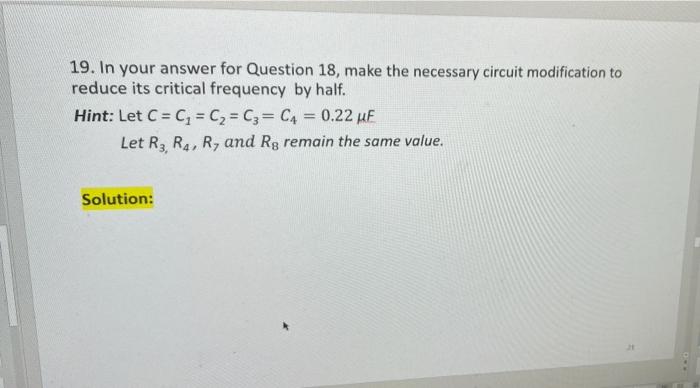

19. In your answer for Question 18, make the necessary circuit modification to reduce its critical frequency by half. Hint: Let C = C₁ = C₂ = C3= C4 = 0.22 μF Let R3, R₁, R, and Rg remain the same value. Solution:
