i need help solving question D
ive attached my data and the 3 formulas the instructor wants us to use are boxed
I Need Help Solving Question D Ive Attached My Data And The 3 Formulas The Instructor Wants Us To Use Are Boxed 1 (31.98 KiB) Viewed 30 times
I Need Help Solving Question D Ive Attached My Data And The 3 Formulas The Instructor Wants Us To Use Are Boxed 2 (14.87 KiB) Viewed 30 times

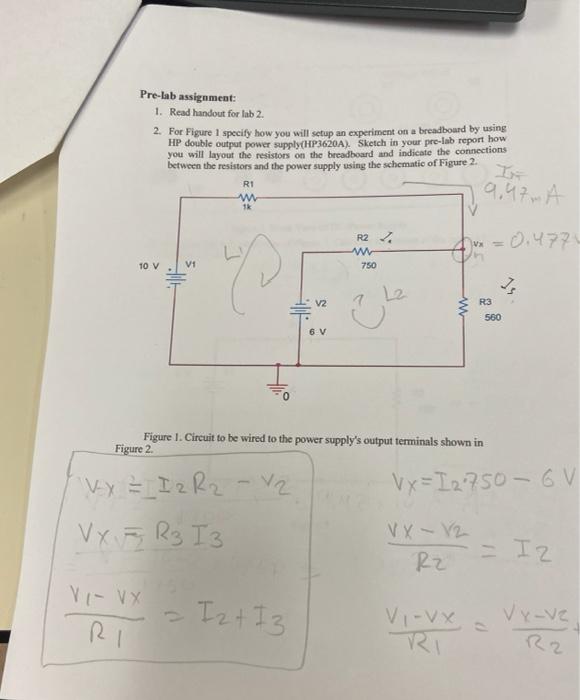

Pre-lab assignment: 1. Read handout for lab 2. 2. For Figure 1 specify how you will setup an experiment on a breadboard by using HP double output power supply(HP3620A). Sketch in your pre-lab report how you will layout the resistors on the breadboard and indicate the connections between the resistors and the power supply using the schematic of Figure 2. IF 10 V VI-VX RI V1 R1 www 1k P | vy=_D₂R₂ - V₂ VxR3 13 V2 = 12 +13 6 V R2 www 750 L2 www Figure 1. Circuit to be wired to the power supply's output terminals shown in Figure 2. 9.97 A vx = 0.4771 VX-V2 Rz R3 V₁-VX RI Vx=12750-6V 560 = I2 Vy-vz R2

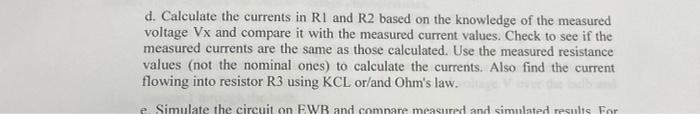

d. Calculate the currents in R1 and R2 based on the knowledge of the measured voltage Vx and compare it with the measured current values. Check to see if the measured currents are the same as those calculated. Use the measured resistance values (not the nominal ones) to calculate the currents. Also find the current flowing into resistor R3 using KCL or/and Ohm's law.coding e Simulate the circuit on EWB and compare measured and simulated results For
