1. Objectives 1. To study the behavior of the output voltage DC ripples when different smoothing capacitors are used. 2.

Post by answerhappygod »

1 Objectives 1 To Study The Behavior Of The Output Voltage Dc Ripples When Different Smoothing Capacitors Are Used 2 1
1 Objectives 1 To Study The Behavior Of The Output Voltage Dc Ripples When Different Smoothing Capacitors Are Used 2 1 (61.12 KiB) Viewed 38 times
Please dont forget to solve all the qustions (screenshot for thesimulation, circuit, and numbers for the table).

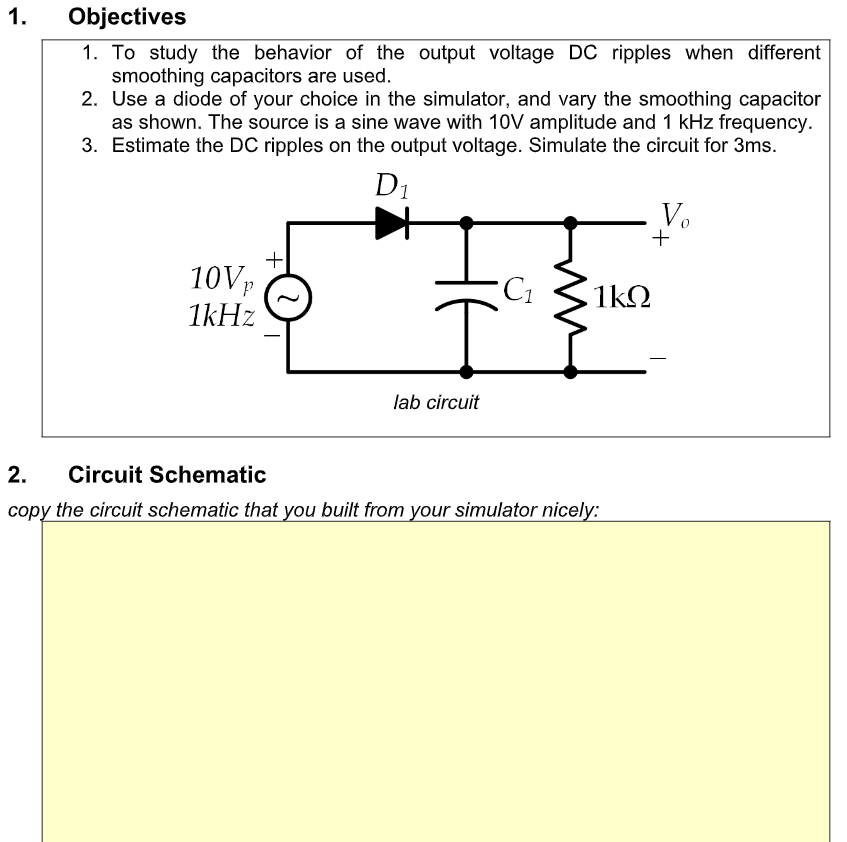

1. Objectives 1. To study the behavior of the output voltage DC ripples when different smoothing capacitors are used. 2. Use a diode of your choice in the simulator, and vary the smoothing capacitor as shown. The source is a sine wave with 10V amplitude and 1 kHz frequency. 3. Estimate the DC ripples on the output voltage. Simulate the circuit for 3ms. D₁ 10Vp 1kHz lab circuit С1 1kQ 2. Circuit Schematic copy the circuit schematic that you built from your simulator nicely: V₂ +
3. Results 4. C₁ (F) 100nF Remarks 1uF 10uF Vo (V) plot the simulation output voltage when C₁= 1uF showing the ripple size: ripples (V)
