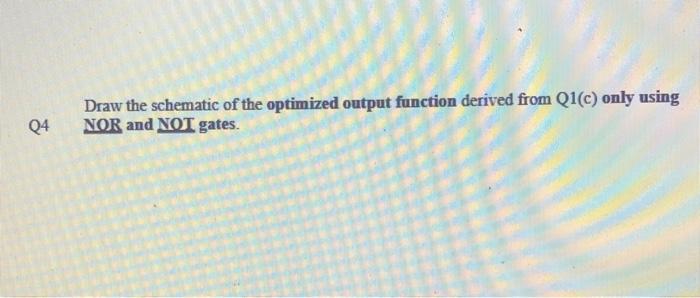

Q4 Draw the schematic of the optimized output function derived from Q1(c) only using NOR and NOT gates.

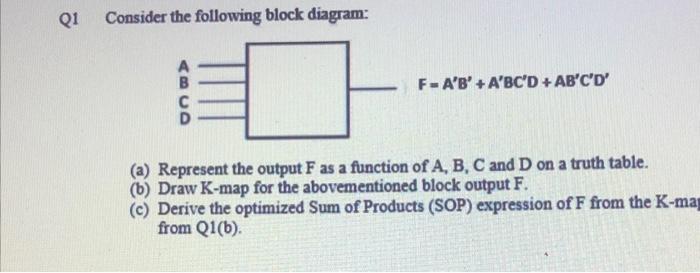

Q1 Consider the following block diagram: ABCD с F-A'B' + A'BC'D + AB'C'D' (a) Represent the output F as a function of A, B, C and D on a truth table. (b) Draw K-map for the abovementioned block output F. (c) Derive the optimized Sum of Products (SOP) expression of F from the K-mag from Q1(b).
