Consider the RLC-circuit shown below: 1 Assume: R = 5ª, L = 1H, C = — F, vr(t) 6 (a) - Find the inductor voltage V₁. (b)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider the RLC-circuit shown below: 1 Assume: R = 5ª, L = 1H, C = — F, vr(t) 6 (a) - Find the inductor voltage V₁. (b)

Post by answerhappygod »

Consider The Rlc Circuit Shown Below 1 Assume R 5a L 1h C F Vr T 6 A Find The Inductor Voltage V B 1
Consider The Rlc Circuit Shown Below 1 Assume R 5a L 1h C F Vr T 6 A Find The Inductor Voltage V B 1 (72.15 KiB) Viewed 16 times

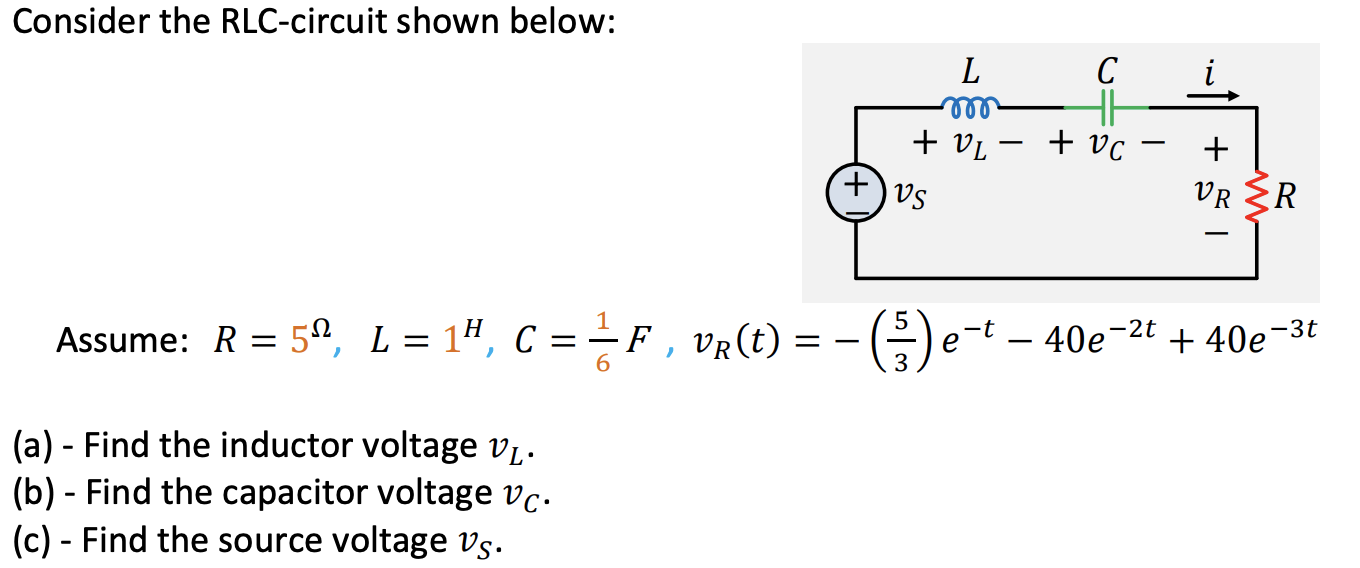

Consider the RLC-circuit shown below: 1 Assume: R = 5ª, L = 1H, C = — F, vr(t) 6 (a) - Find the inductor voltage V₁. (b) - Find the capacitor voltage vc. (c) - Find the source voltage vs. + L m + VL- VS = VR(t) = − (²) e- C + vc - i + VR ≤R -3t 40e-2t+40e¯
