ME 341 Homework 11 1. RLC circuit has R = 10 ohm, C = 100 uF, and L= 100mH. When it is excited by a step input of 5V, de

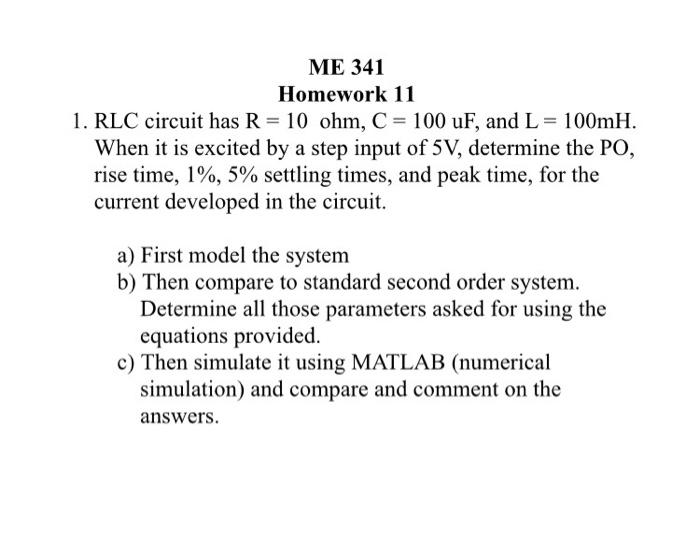

ME 341 Homework 11 1. RLC circuit has R = 10 ohm, C = 100 uF, and L= 100mH. When it is excited by a step input of 5V, determine the PO, rise time, 1%, 5% settling times, and peak time, for the current developed in the circuit. a) First model the system b) Then compare to standard second order system. Determine all those parameters asked for using the equations provided. c) Then simulate it using MATLAB (numerical simulation) and compare and comment on the answers.
