(b) Refer the transfer function as shown in Figure Q2(b). R(s) 5s + 10 s4 + 2s3+ s² + 5s + 10 Figure Q2(b): Transfer fun

Post by answerhappygod »

B Refer The Transfer Function As Shown In Figure Q2 B R S 5s 10 S4 2s3 S 5s 10 Figure Q2 B Transfer Fun 1
B Refer The Transfer Function As Shown In Figure Q2 B R S 5s 10 S4 2s3 S 5s 10 Figure Q2 B Transfer Fun 1 (38.08 KiB) Viewed 34 times
asap pls 🙏

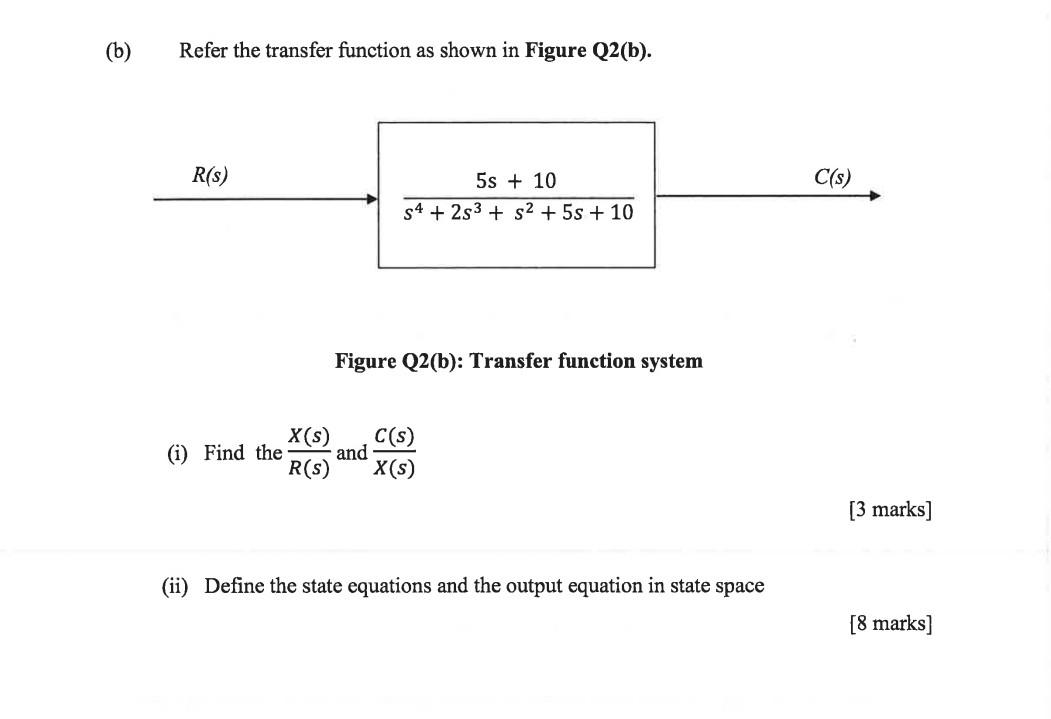

(b) Refer the transfer function as shown in Figure Q2(b). R(s) 5s + 10 s4 + 2s3+ s² + 5s + 10 Figure Q2(b): Transfer function system X(s) (i) Find the and R(s) C(s) X(s) (ii) Define the state equations and the output equation in state space C(s) [3 marks] [8 marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
