Design a 48 kHz, 3 poles high pass filter with a Butterworth filter response. Suggest changes that need to be done to m

[answerhappygod]

Design a 48 kHz, 3 poles high pass filter with a Butterworth filter response. Suggest changes that need to be done to make the filter function as a band pass filter with bandwidth of 10 kHz (consider a 3 poles filter addition). Draw the new circuit design with their suggested parameters value. Calculate the center frequency, and draw the frequency response (include and label the center frequency, lower and higher cut-off frequency, and the roll-off rate).

Design A 48 Khz 3 Poles High Pass Filter With A Butterworth Filter Response Suggest Changes That Need To Be Done To M 1 (38.74 KiB) Viewed 40 times

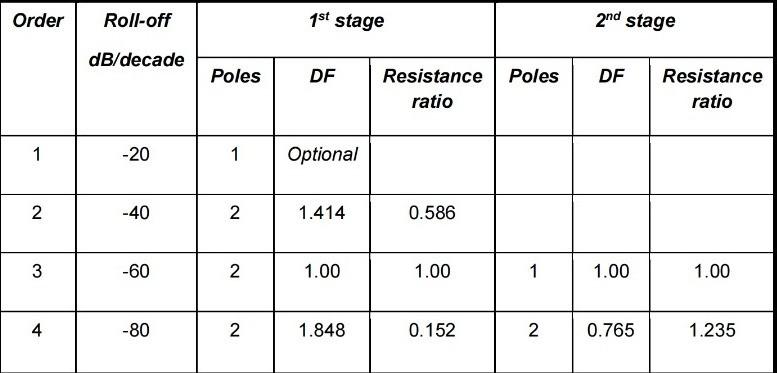

Order Roll-off dB/decade 1 2 IN 3 4 -20 -40 -60 -80 Poles 1 2 2 2 1st stage DF Optional 1.414 1.00 1.848 Resistance Poles ratio 0.586 1.00 0.152 1 2 2nd stage DF Resistance ratio 1.00 0.765 1.00 1.235
