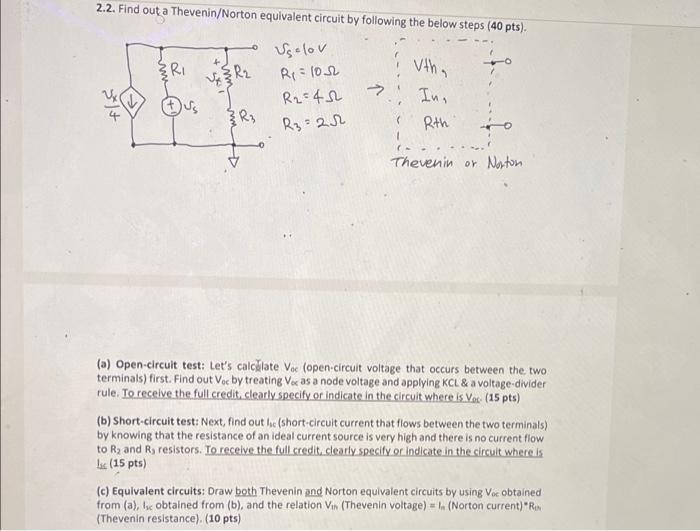

2.2. Find out a Thevenin/Norton equivalent circuit by following the below steps (40 pts). Uslov R₁ = 1052 */+ R₁ √₂ R₂ R

[answerhappygod]

2 2 Find Out A Thevenin Norton Equivalent Circuit By Following The Below Steps 40 Pts Uslov R 1052 R R R 1 (43.75 KiB) Viewed 34 times

2.2. Find out a Thevenin/Norton equivalent circuit by following the below steps (40 pts). Uslov R₁ = 1052 */+ R₁ √₂ R₂ R₂ R₂=452 R3=25 Vth, In, Rth Thevenin or Norton. (a) Open-circuit test: Let's calcălate Vec (open-circuit voltage that occurs between the two- terminals) first. Find out Vec by treating Voc as a node voltage and applying KCL & a voltage-divider rule. To receive the full credit, clearly specify or indicate in the circuit where is Voc (15 pts) (b) Short-circuit test: Next, find out lc (short-circuit current that flows between the two terminals) by knowing that the resistance of an ideal current source is very high and there is no current flow to R₂ and R, resistors. To receive the full credit, clearly specify or indicate in the circuit where is (15 pts) (c) Equivalent circuits: Draw both Thevenin and Norton equivalent circuits by using Voc obtained from (a), Is obtained from (b), and the relation Vin (Thevenin voltage) = ln (Norton current) "Re (Thevenin resistance). (10 pts)
