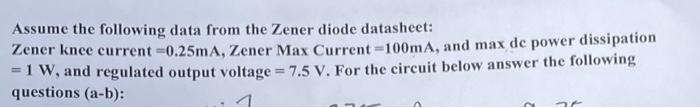

Assume the following data from the Zener diode datasheet: Zener knee current -0.25mA, Zener Max Current=100mA, and max de power dissipation = 1 W, and regulated output voltage = 7.5 V. For the circuit below answer the following questions (a-b): 2 ar
a) What range of input voltage can be regulated using this information?
b) Considering the average input voltage found in (a), what will be the minimum value of R₂? [10]
