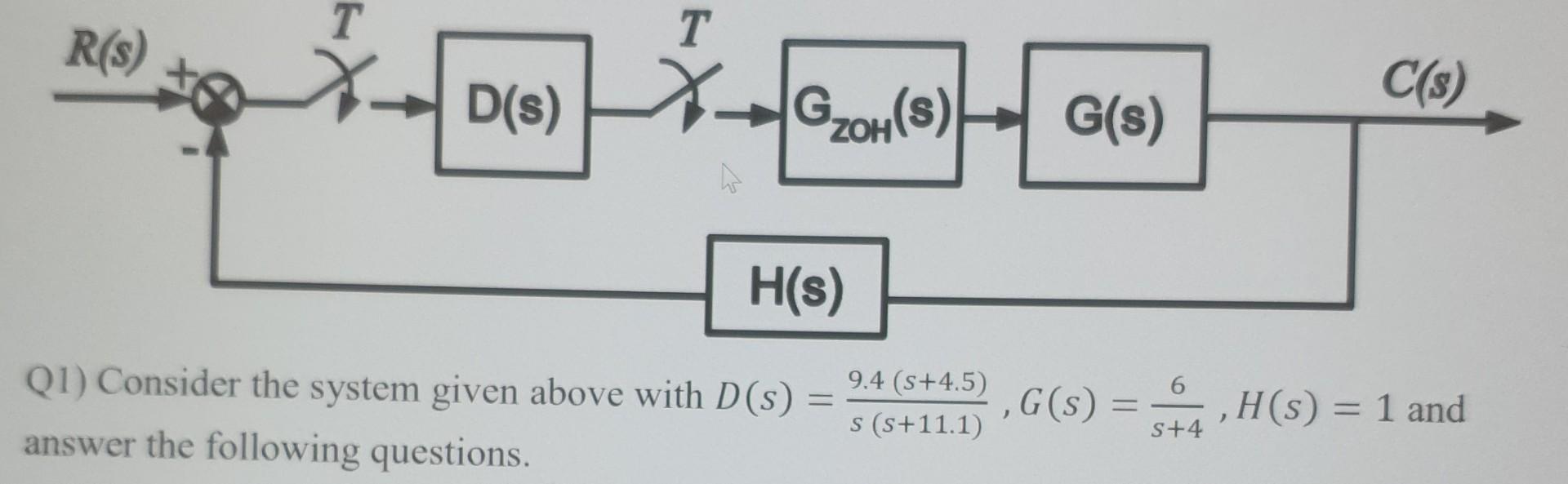

R(S) T D(s) T GZOH(S) H(s) Q1) Consider the system given above with D(s) answer the following questions. = 9.4 (s+4.5) s (s+11.1) G(s) G(s) = S+4 C(s) , H(s) = 1 and

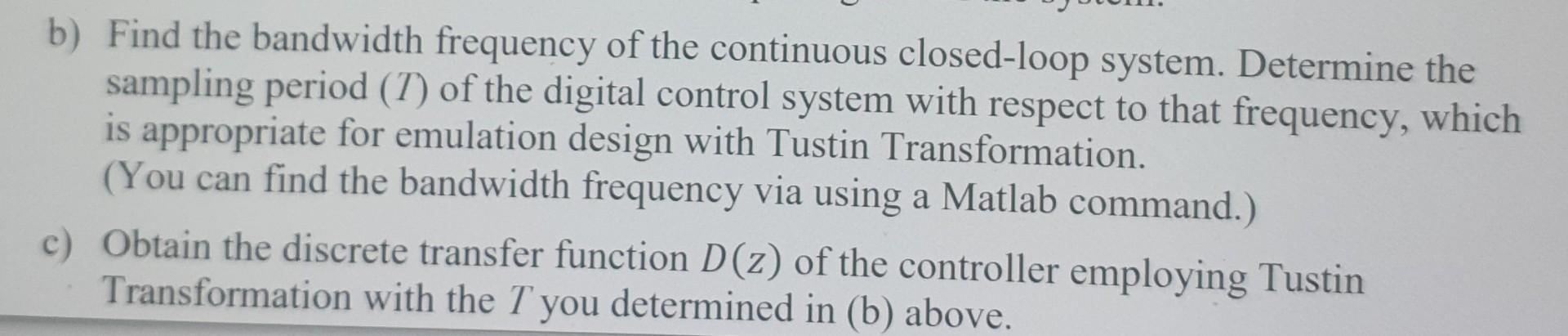

b) Find the bandwidth frequency of the continuous closed-loop system. Determine the sampling period (7) of the digital control system with respect to that frequency, which is appropriate for emulation design with Tustin Transformation. (You can find the bandwidth frequency via using a Matlab command.) c) Obtain the discrete transfer function D(z) of the controller employing Tustin Transformation with the T you determined in (b) above.
