Problem 2.2 For the circuit in Fig. 2.2, R₁ -40 ks2, R-60 k2, R₁-500 k2, Ra-100 k2, and assume ideal op-amp. (a) If C is

[answerhappygod]

Problem 2 2 For The Circuit In Fig 2 2 R 40 Ks2 R 60 K2 R 500 K2 Ra 100 K2 And Assume Ideal Op Amp A If C Is 1 (20.83 KiB) Viewed 21 times

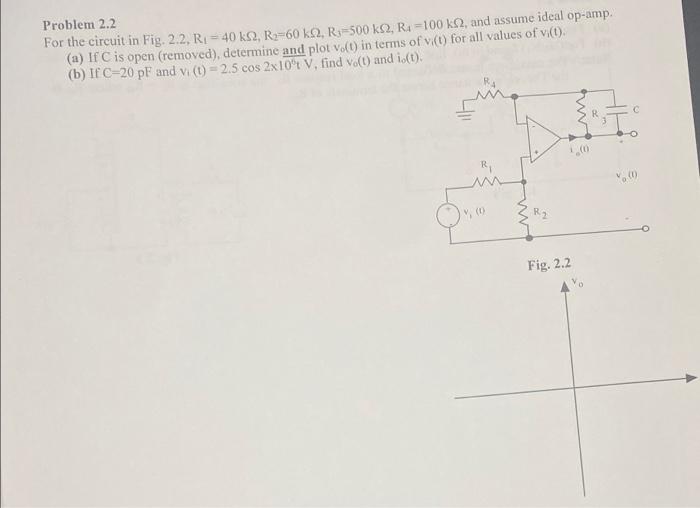

Problem 2.2 For the circuit in Fig. 2.2, R₁ -40 ks2, R-60 k2, R₁-500 k2, Ra-100 k2, and assume ideal op-amp. (a) If C is open (removed), determine and plot vo(t) in terms of vi(t) for all values of vi(t). (b) If C-20 pF and vi (t) = 2.5 cos 2x10 V, find vo(t) and i.(t). , (0) 27. 1.00 Fig. 2.2 v (0)
