In reality, a transmission line is a distributed system. The accuracy of a lumped model can be increasing the number of

Post by answerhappygod »

In Reality A Transmission Line Is A Distributed System The Accuracy Of A Lumped Model Can Be Increasing The Number Of 1
In Reality A Transmission Line Is A Distributed System The Accuracy Of A Lumped Model Can Be Increasing The Number Of 1 (102.07 KiB) Viewed 36 times

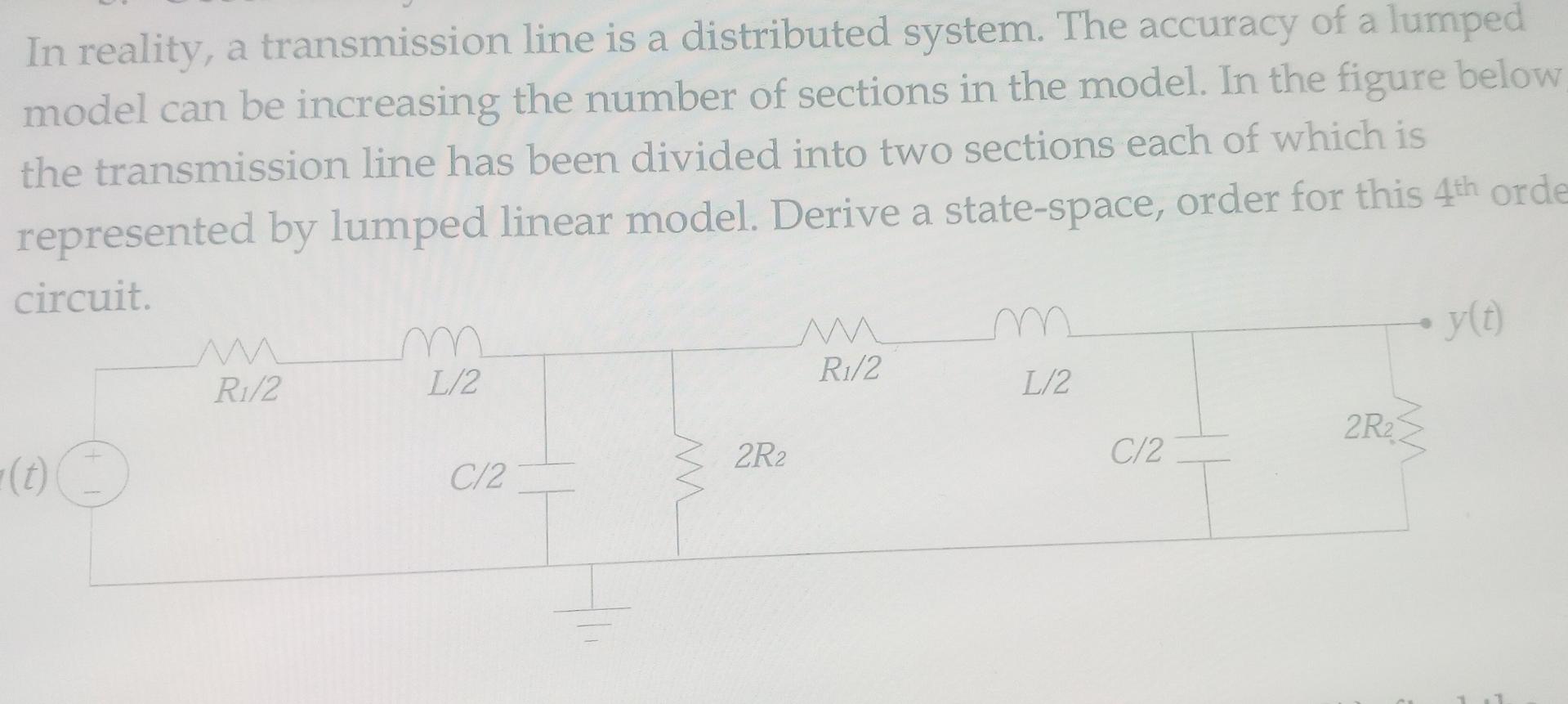

In reality, a transmission line is a distributed system. The accuracy of a lumped model can be increasing the number of sections in the model. In the figure below, the transmission line has been divided into two sections each of which is represented by lumped linear model. Derive a state-space, order for this 4th orde circuit. (t) R₁/2 L/2 C/2 2R2 R₁/2 n L/2 C/2 2R₂ y(t)
