please give the working details of this question for myreferences to study and this is Control Engineering subjects.

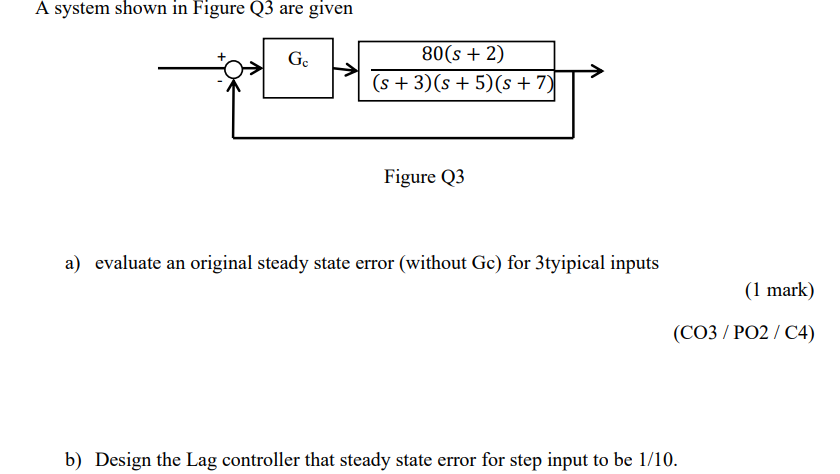

A system shown in Figure Q3 are given Ge 80(s + 2) (s + 3) (s + 5) (s + 7) Figure Q3 a) evaluate an original steady state error (without Gc) for 3tyipical inputs (1 mark) (CO3/PO2 / C4) b) Design the Lag controller that steady state error for step input to be 1/10.
