d) An amplifier is being tested with a square wave signal. The signal frequency is 33.33kHz. The input and output signal

Post by answerhappygod »

D An Amplifier Is Being Tested With A Square Wave Signal The Signal Frequency Is 33 33khz The Input And Output Signal 1
D An Amplifier Is Being Tested With A Square Wave Signal The Signal Frequency Is 33 33khz The Input And Output Signal 1 (73.84 KiB) Viewed 57 times

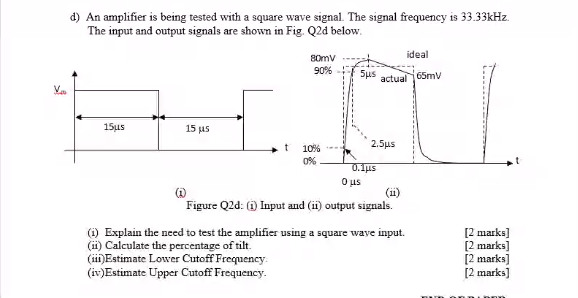

d) An amplifier is being tested with a square wave signal. The signal frequency is 33.33kHz. The input and output signals are shown in Fig. Q2d below ideal 80mV 90% Sus actual 65mV V. 15us 15 MS t 2.5us 10% 0% 0.1us OLLS Figure Q24: Input and (ii) output signals. (1) Explain the need to test the amplifier using a square wave input. (i) Calculate the percentage of tilt (111Estimate Lower Cutoff Frequency (iv)Estimate Upper Cutoff Frequency. [2 marks] [2 marks] [2 marks] [2 marks]
