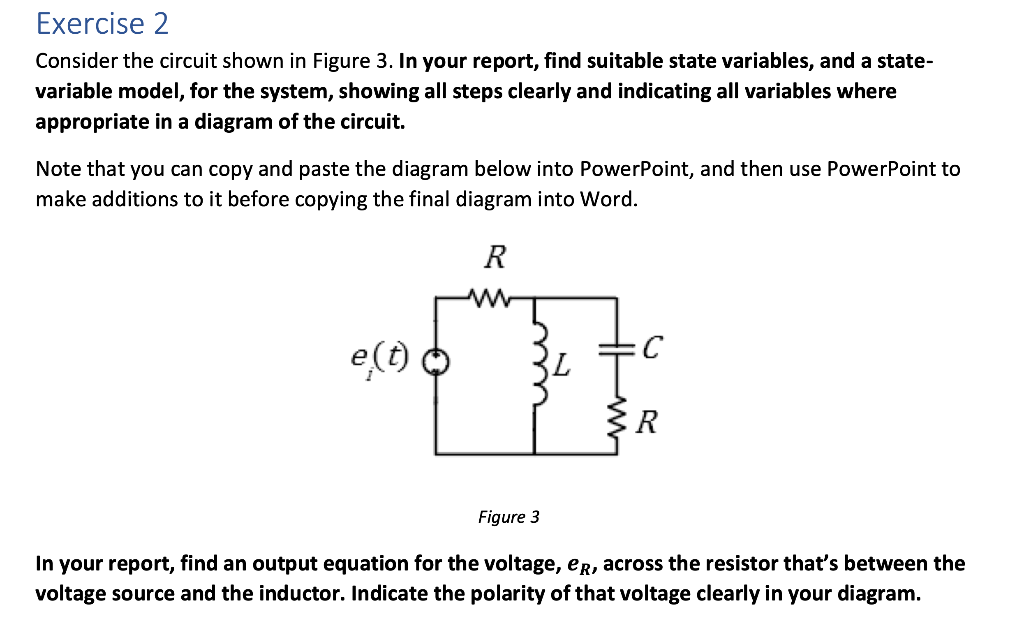

Exercise 2 Consider the circuit shown in Figure 3. In your report, find suitable state variables, and a state- variable

[answerhappygod]

Exercise 2 Consider The Circuit Shown In Figure 3 In Your Report Find Suitable State Variables And A State Variable 1 (82.29 KiB) Viewed 37 times

Exercise 2 Consider the circuit shown in Figure 3. In your report, find suitable state variables, and a state- variable model, for the system, showing all steps clearly and indicating all variables where appropriate in a diagram of the circuit. Note that you can copy and paste the diagram below into PowerPoint, and then use PowerPoint to make additions to it before copying the final diagram into Word. e(t) R ww Figure 3 :C R In your report, find an output equation for the voltage, e, across the resistor that's between the voltage source and the inductor. Indicate the polarity of that voltage clearly in your diagram.
