ive added a picture of the drawing i did for (b) which i think is correct? please confirm this please. thanks.
Ive Added A Picture Of The Drawing I Did For B Which I Think Is Correct Please Confirm This Please Thanks 1 (57.32 KiB) Viewed 28 times
Ive Added A Picture Of The Drawing I Did For B Which I Think Is Correct Please Confirm This Please Thanks 2 (57.32 KiB) Viewed 28 times
Ive Added A Picture Of The Drawing I Did For B Which I Think Is Correct Please Confirm This Please Thanks 3 (17.32 KiB) Viewed 28 times

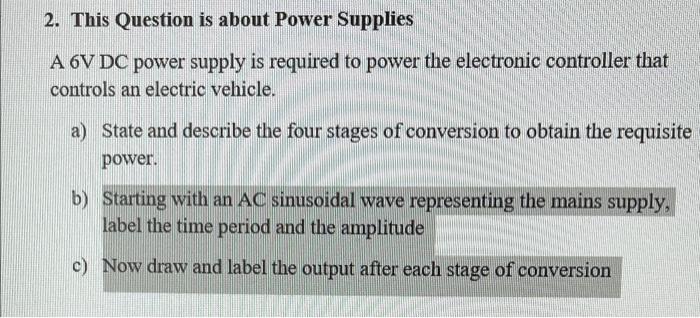

2. This Question is about Power Supplies A 6V DC power supply is required to power the electronic controller that controls an electric vehicle. a) State and describe the four stages of conversion to obtain the requisite power. b) Starting with an AC sinusoidal wave representing the mains supply, label the time period and the amplitude c) Now draw and label the output after each stage of conversion

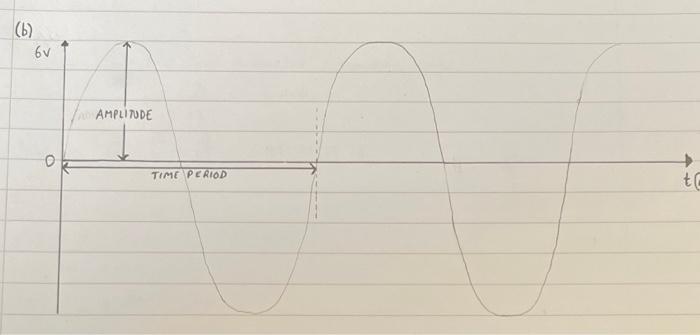

(6) 6v 0 AMPLITUDE TIME PERIOD to
