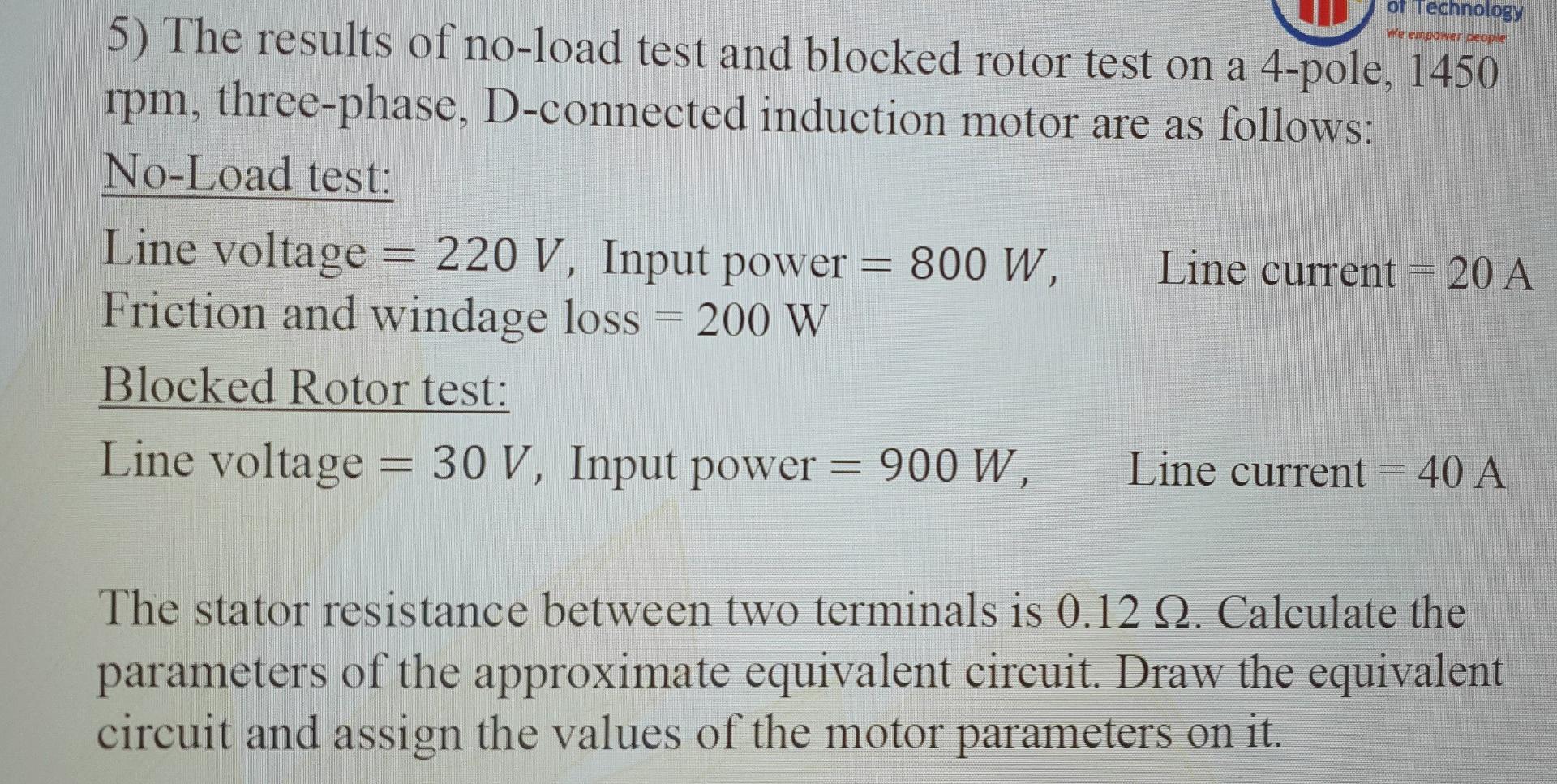

of Technology We empower people 5) The results of no-load test and blocked rotor test on a 4-pole, 1450 rpm, three-phase, D-connected induction motor are as follows: No-Load test: Line voltage = 220 V, Input power = 800 W, Friction and windage loss 200 W Blocked Rotor test: Line voltage = 30 V, Input power = 900 W, PAROTEN Line current = 20 A Line current = 40 A The stator resistance between two terminals is 0.12 2. Calculate the parameters of the approximate equivalent circuit. Draw the equivalent circuit and assign the values of the motor parameters on it.
