Calculate the armature resistance of a 6-pole lap-wound armature winding from the following data number of slots=150; Co

Post by answerhappygod »

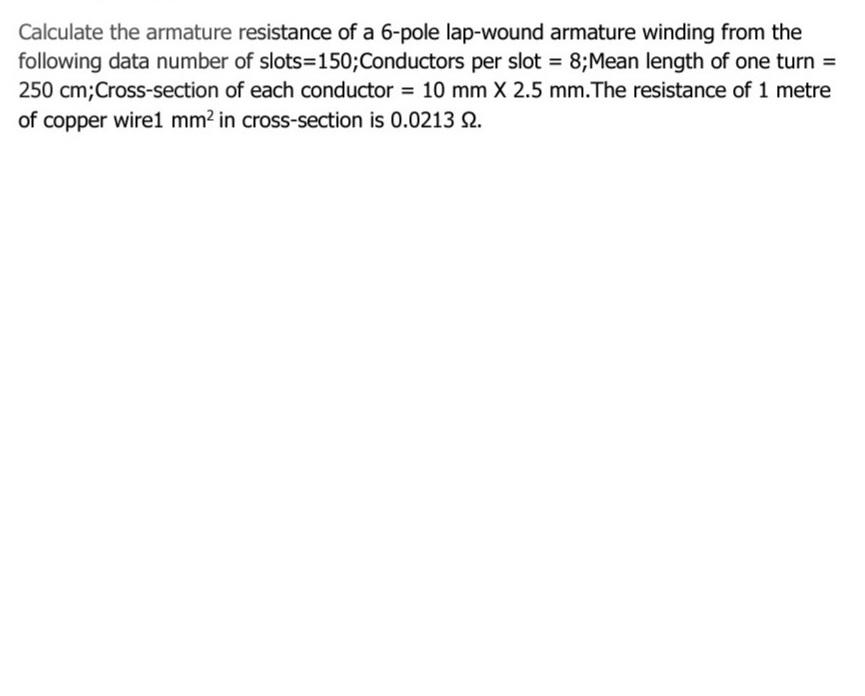

Calculate The Armature Resistance Of A 6 Pole Lap Wound Armature Winding From The Following Data Number Of Slots 150 Co 1
Calculate The Armature Resistance Of A 6 Pole Lap Wound Armature Winding From The Following Data Number Of Slots 150 Co 1 (31.1 KiB) Viewed 32 times
Please write clearly, and where necessary include neat sketches,I will upvolt
Calculate the armature resistance of a 6-pole lap-wound armature winding from the following data number of slots=150; Conductors per slot = 8;Mean length of one turn = 250 cm; Cross-section of each conductor = 10 mm X 2.5 mm.The resistance of 1 metre of copper wire1 mm² in cross-section is 0.0213 S.
