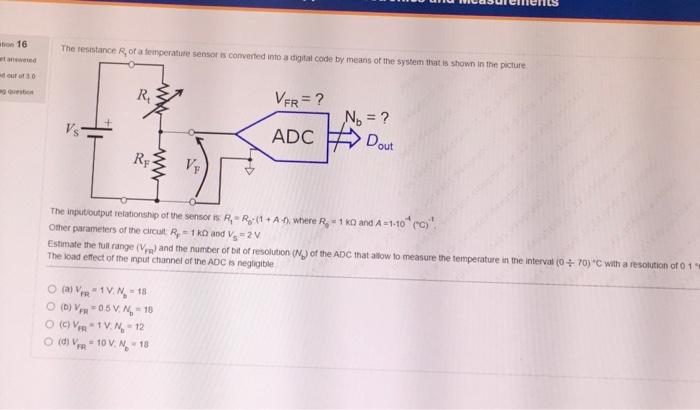

ation 16 answered out of 30 The resistance R, of a temperature sensor is converted into a digital code by means of the system that is shown in the picture Vs R₁ RE VF VFR = ? ADC O(a) V-1V. N-18 O (D) VFR 0.5 V N-18 O(C) VR1 V. N-12 O (d) V 10 V. N-18 N₁ = ? Dout The input/output relationship of the sensor is R₁ R₂ (1+A), where R₂ = 1 KQ and A=1-10 (C) Other parameters of the circuit R, 1k0 and V-2V Estimate the full range (V) and the number of bit of resolution (N) of the ADC that allow to measure the temperature in the interval (0+70) "C with a resolution of 0.1% The load effect of the input channel of the ADC is negligible
