MEDIA ACTIVITY ASSIGNMENT (INDIVIDUAL) Class AB amplifiers combine Class A and Class B to achieve an amplifier with bett

[answerhappygod]

Media Activity Assignment Individual Class Ab Amplifiers Combine Class A And Class B To Achieve An Amplifier With Bett 1 (52.98 KiB) Viewed 37 times

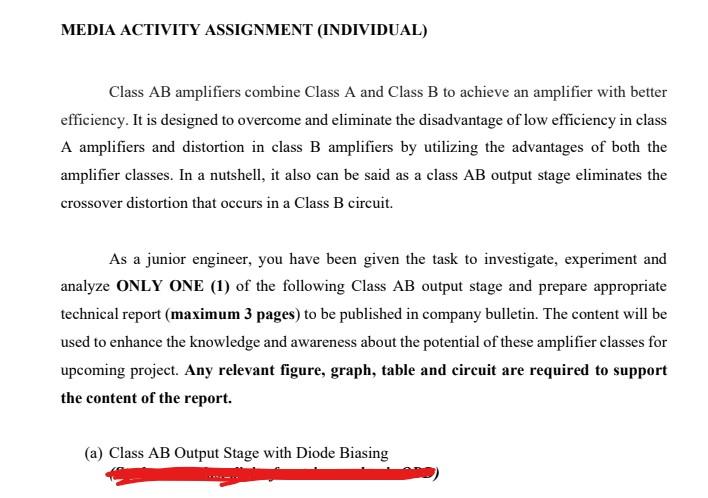

MEDIA ACTIVITY ASSIGNMENT (INDIVIDUAL) Class AB amplifiers combine Class A and Class B to achieve an amplifier with better efficiency. It is designed to overcome and eliminate the disadvantage of low efficiency in class A amplifiers and distortion in class B amplifiers by utilizing the advantages of both the amplifier classes. In a nutshell, it also can be said as a class AB output stage eliminates the crossover distortion that occurs in a Class B circuit. As a junior engineer, you have been given the task to investigate, experiment and analyze ONLY ONE (1) of the following Class AB output stage and prepare appropriate technical report (maximum 3 pages) to be published in company bulletin. The content will be used to enhance the knowledge and awareness about the potential of these amplifier classes for upcoming project. Any relevant figure, graph, table and circuit are required to support the content of the report. (a) Class AB Output Stage with Diode Biasing
