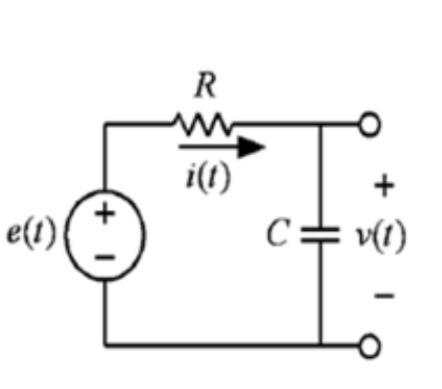

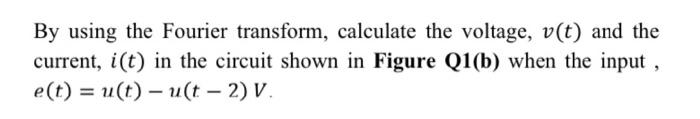

By using the Fourier transform, calculate the voltage, v(t) and the current, i(t) in the circuit shown in Figure Q1(b) when the input e(t) = u(t)- u(t - 2) V.
e(1) R w i(t) + v(1)
