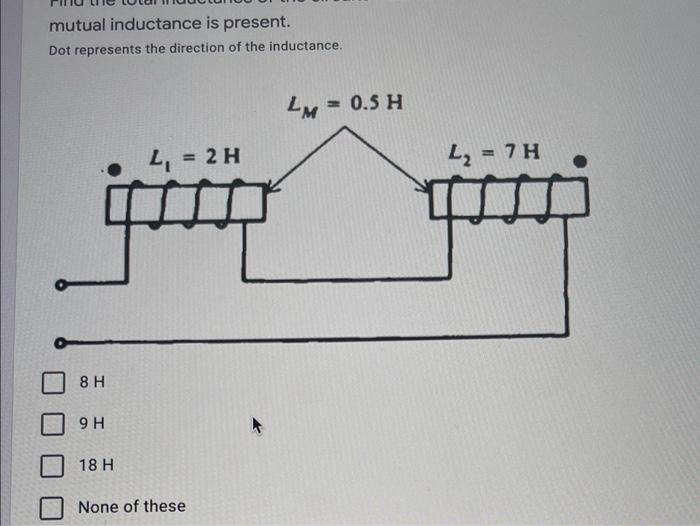

mutual inductance is present. Dot represents the direction of the inductance. 8 H 9 H 18 H L₁ = 2 H None of these LM = 0.5 H L₂ = 7 H

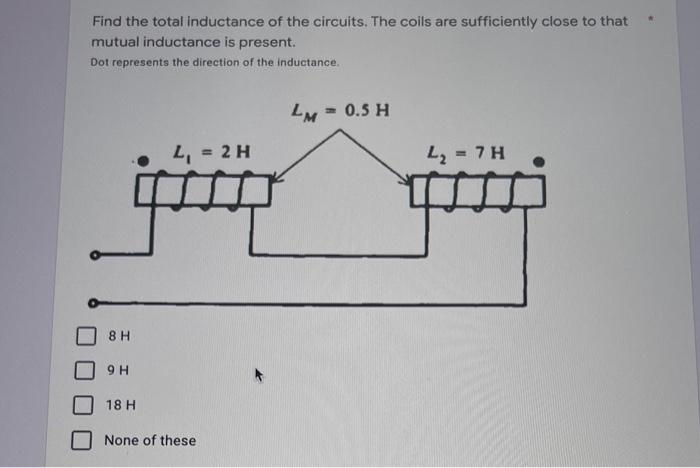

Find the total inductance of the circuits. The coils are sufficiently close to that mutual inductance is present. Dot represents the direction of the inductance. 8 H 9H 18 H L₁ = 2 H None of these LM = 0.5 H L₂ = 7 H
