IF= Vsec mA out1 D1 D3 ++ 1N4148 1N4148 D2 D4 1N4148 1N4148 out2 R1 Given a bridge-type full-wave rectifier circuit with

Post by answerhappygod »

If Vsec Ma Out1 D1 D3 1n4148 1n4148 D2 D4 1n4148 1n4148 Out2 R1 Given A Bridge Type Full Wave Rectifier Circuit With 1
If Vsec Ma Out1 D1 D3 1n4148 1n4148 D2 D4 1n4148 1n4148 Out2 R1 Given A Bridge Type Full Wave Rectifier Circuit With 1 (31.33 KiB) Viewed 43 times

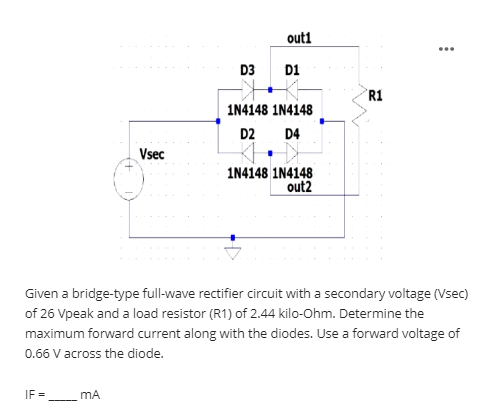

IF= Vsec mA out1 D1 D3 ++ 1N4148 1N4148 D2 D4 1N4148 1N4148 out2 R1 Given a bridge-type full-wave rectifier circuit with a secondary voltage (Vsec) of 26 Vpeak and a load resistor (R1) of 2.44 kilo-Ohm. Determine the maximum forward current along with the diodes. Use a forward voltage of 0.66 V across the diode. ...
