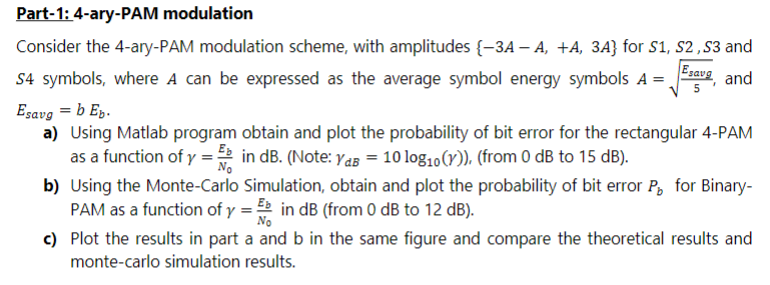

Esavg, and Part-1: 4-ary-PAM modulation Consider the 4-ary-PAM modulation scheme, with amplitudes {-3A - A, +A, 3A} for

[answerhappygod]

Esavg And Part 1 4 Ary Pam Modulation Consider The 4 Ary Pam Modulation Scheme With Amplitudes 3a A A 3a For 1 (103.74 KiB) Viewed 44 times

Esavg, and Part-1: 4-ary-PAM modulation Consider the 4-ary-PAM modulation scheme, with amplitudes {-3A - A, +A, 3A} for S1, S2,S3 and S4 symbols, where A can be expressed as the average symbol energy symbols A = Esavg = b Ep. a) Using Matlab program obtain and plot the probability of bit error for the rectangular 4-PAM as a function of y = in dB. (Note: YdB = 10 log10(Y)), (from 0 dB to 15 dB). NO b) Using the Monte-Carlo Simulation, obtain and plot the probability of bit error Pp for Binary- PAM as a function of y = in dB (from 0 dB to 12 dB). No c) Plot the results in part a and b in the same figure and compare the theoretical results and monte-carlo simulation results.
