3 For The Zener Voltage Regulator Circuit Shown Below Determine The Minimum And The Maximum Value Of The Input Voltage 1 (24.95 KiB) Viewed 69 times
need help with zener diode vi variable.
urgent

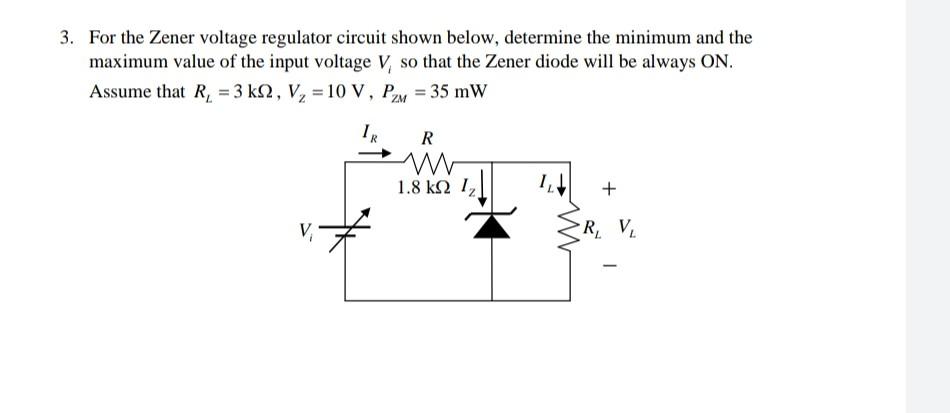

3. For the Zener voltage regulator circuit shown below, determine the minimum and the maximum value of the input voltage V, so that the Zener diode will be always ON. Assume that R, = 3 k22, V,=10 V, Pzu = 35 mW ZM IR R 1.8 k 2 12 + •R, V.
