12vac D1 T1 T2 Vinput Ch 1 Ovac T3 D2 100 Kg Voutput Ch 2 12vac Figure 5 Center Tapped Full Wave Rectifier Circuit 6 1 (88.36 KiB) Viewed 57 times
12vac D1 T1 T2 Vinput Ch 1 Ovac T3 D2 100 Kg Voutput Ch 2 12vac Figure 5 Center Tapped Full Wave Rectifier Circuit 6 2 (41.13 KiB) Viewed 57 times

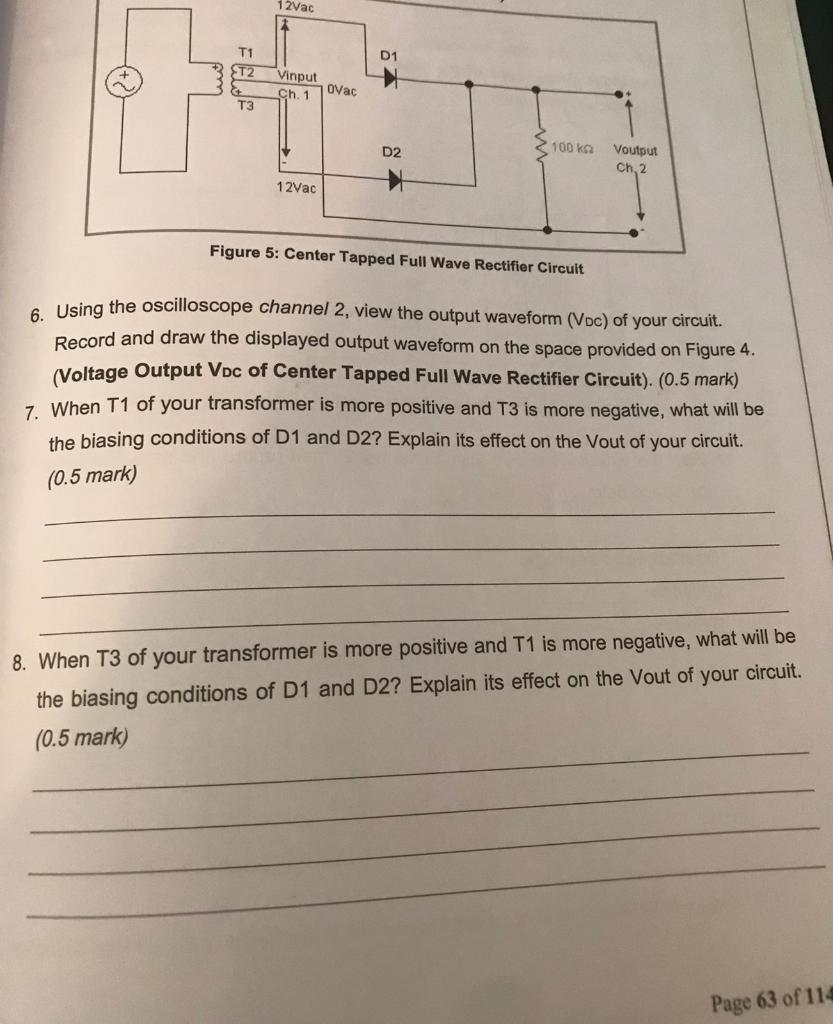

12Vac D1 T1 T2 Vinput Ch.1 Ovac T3 D2 100 KG Voutput Ch, 2 12vac Figure 5: Center Tapped Full Wave Rectifier Circuit 6. Using the oscilloscope channel 2, view the output waveform (Voc) of your circuit. Record and draw the displayed output waveform on the space provided on Figure 4. (Voltage Output Voc of Center Tapped Full Wave Rectifier Circuit). (0.5 mark) 7. When T1 of your transformer is more positive and T3 is more negative, what will be the biasing conditions of D1 and D2? Explain its effect on the Vout of your circuit. (0.5 mark) 8. When T3 of your transformer is more positive and T1 is more negative, what will be the biasing conditions of D1 and D2? Explain its effect on the Vout of your circuit. (0.5 mark) Page 63 of 114

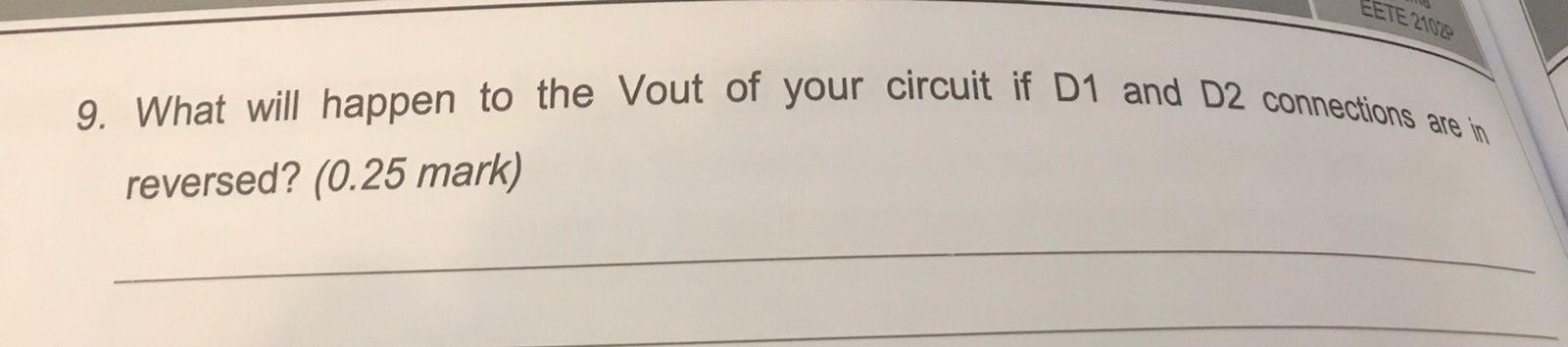

EETE 20 9. What will happen to the Vout of your circuit if D1 and D2 connections are in reversed? (0.25 mark)
