3. For the Zener voltage regulator circuit shown below, determine the minimum and the maximum value of the input voltage

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. For the Zener voltage regulator circuit shown below, determine the minimum and the maximum value of the input voltage

Post by answerhappygod »

3 For The Zener Voltage Regulator Circuit Shown Below Determine The Minimum And The Maximum Value Of The Input Voltage 1
3 For The Zener Voltage Regulator Circuit Shown Below Determine The Minimum And The Maximum Value Of The Input Voltage 1 (30.76 KiB) Viewed 47 times

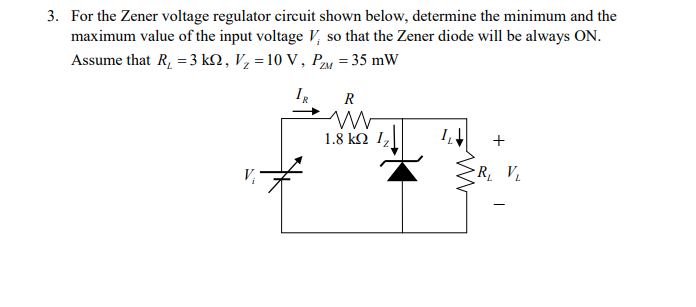

3. For the Zener voltage regulator circuit shown below, determine the minimum and the maximum value of the input voltage V, so that the Zener diode will be always ON. Assume that R2 = 3 k1, V2 = 10 V, Pzm = 35 mW I R W 1.8 kΩ Ι, 11 + RV
