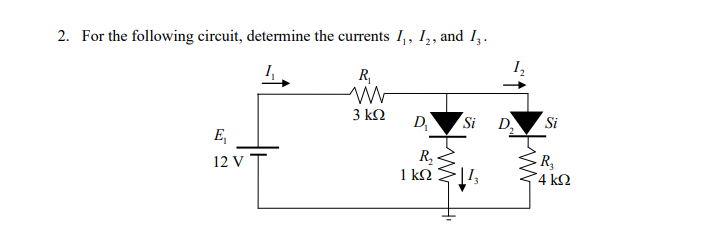

2. For the following circuit, determine the currents 1, 12, and 1z. R W 3 k2 D Si D. Si E 12 V R 1 k2 112 R 4 kΩ M
