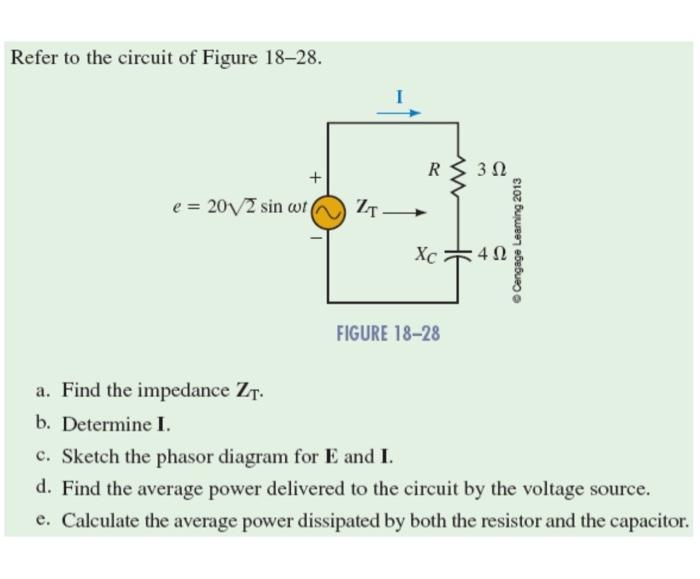

Refer to the circuit of Figure 18–28. R R 312 + e = 2012 sin w ZT Cengage Leaming 2013 Xc +42 Ω FIGURE 18-28 a. Find the
Refer to the circuit of Figure 18–28. R R 312 + e = 2012 sin w ZT Cengage Leaming 2013 Xc +42 Ω FIGURE 18-28 a. Find the impedance ZT. b. Determine I. c. Sketch the phasor diagram for E and I. d. Find the average power delivered to the circuit by the voltage source. e. Calculate the average power dissipated by both the resistor and the capacitor.
