Assignment on KMAP: (Digital Logic) You have been hired by a home security company to design and implement a home alarm

[answerhappygod]

Assignment On Kmap Digital Logic You Have Been Hired By A Home Security Company To Design And Implement A Home Alarm 1 (50.49 KiB) Viewed 38 times

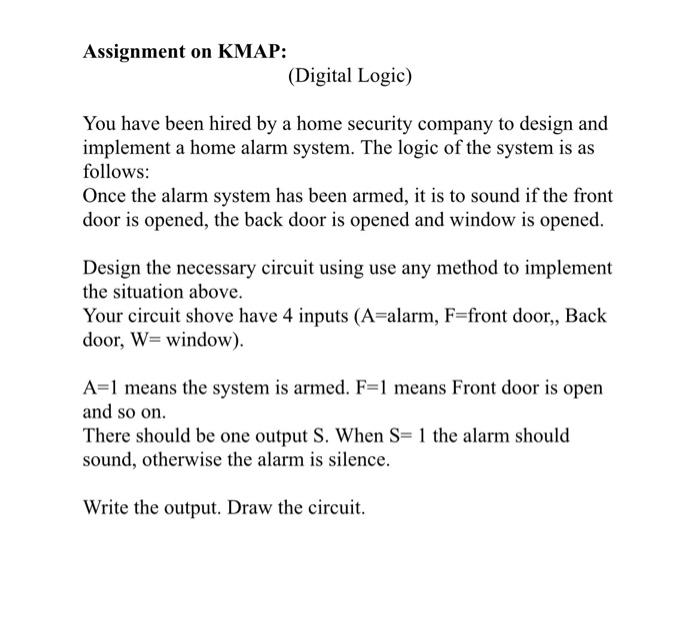

Assignment on KMAP: (Digital Logic) You have been hired by a home security company to design and implement a home alarm system. The logic of the system is as follows: Once the alarm system has been armed, it is to sound if the front door is opened, the back door is opened and window is opened. Design the necessary circuit using use any method to implement the situation above. Your circuit shove have 4 inputs (A-alarm, F-front door,, Back door, W= window). A=1 means the system is armed. F=1 means Front door is open and so on. There should be one output S. When S= 1 the alarm should sound, otherwise the alarm is silence. Write the output. Draw the circuit.
