16 8 Ω V -j6 Ω 1632 2.4 A 100V sinusoidal voltage is applied to a series combination of a 3-12 resistor, an 8-12 inducto
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
16 8 Ω V -j6 Ω 1632 2.4 A 100V sinusoidal voltage is applied to a series combination of a 3-12 resistor, an 8-12 inducto

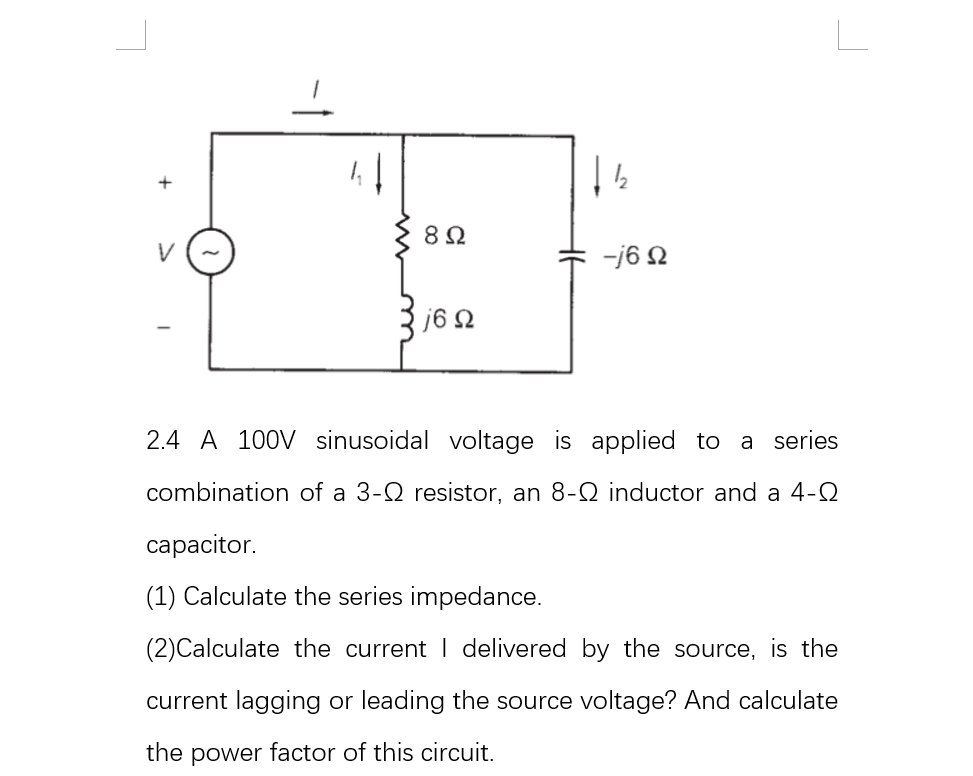

16 8 Ω V -j6 Ω 1632 2.4 A 100V sinusoidal voltage is applied to a series combination of a 3-12 resistor, an 8-12 inductor and a 4-12 capacitor. (1) Calculate the series impedance. (2)Calculate the current | delivered by the source, is the current lagging or leading the source voltage? And calculate the power factor of this circuit.
