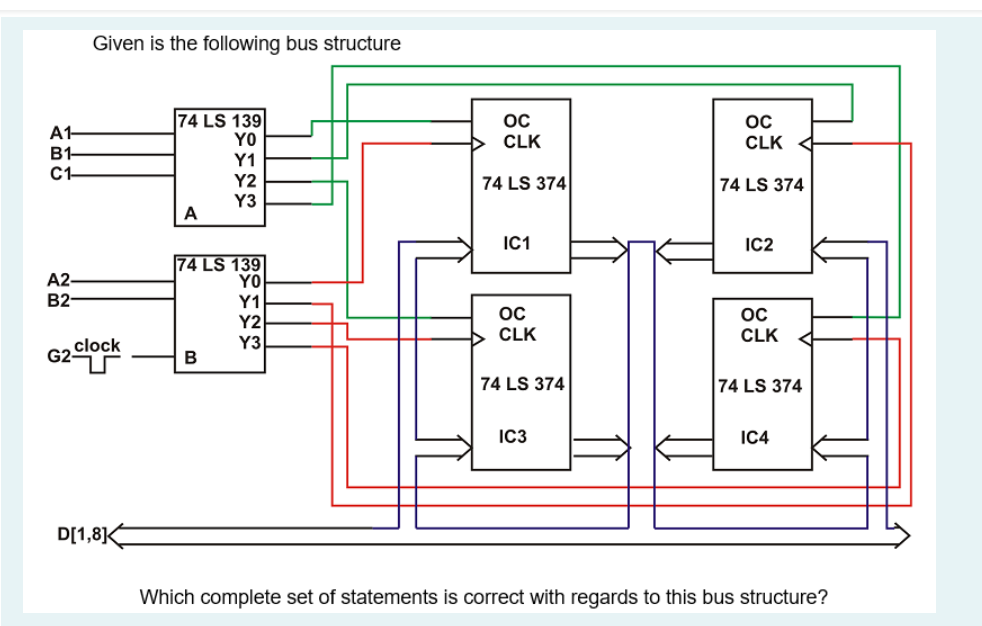

Given is the following bus structure OC CLK OC CLK A1- B1- C1- 174 LS 139 YO Y1 Y2 Y3 А 74 LS 374 74 LS 374 IC1 IC2 A2 B2 74 LS 139 YO Y1 Y2 Y3 B OC CLK OC CLK G2- clock U 74 LS 374 74 LS 374 IC3 IC4 D[1,8K Which complete set of statements is correct with regards to this bus structure?

Wählen Sie eine Antwort: O a. Components IC1, IC2, IC3, IC4 of type 74LS374 are decoders Component A of type 74 LS139 selects the IC which is allowed to read data from the bus Only one of the components of type 74 LS 374 is allowed to read data from the bus at a certain point in time All components of type 74 LS 374 are allowed to write data to the bus at a certain point in time O b. Components IC1, IC2, C3, C4 of type 74LS374 are decoders Component A of type 74 LS139 selects the IC which is allowed to read data from the bus Only one of the components of type 74 LS 374 is allowed to write data to the bus at a certain point in time All components of type 74 LS 374 are allowed to read data from the bus at a certain point in time O c. Components IC1, IC2, IC3, IC4 of type 74LS374 are decoders Component A of type 74 LS139 selects the IC which is allowed to read data from the bus Only one of the components of type 74 LS 374 is allowed to write data to the bus at a certain point in time All components of type 74 LS 374 are allowed to write data to the bus at a certain point in time

Verbleibende Zeit 0:50:05 O d. Components IC1, IC2, IC3, IC4 of type 74LS374 are decoders Component A of type 74 LS139 selects the IC which is allowed to write data to the bus Only one of the components of type 74 LS 374 is allowed to read data from the bus at a certain point in time All components of type 74 LS 374 are allowed to write data to the bus at a certain point in time O e. Components IC1, IC2, IC3, IC4 of type 74LS374 are registers Component A of type 74 LS139 selects the IC which is allowed to read data from the bus Only one of the components of type 74 LS 374 is allowed to read data from the bus at a certain point in time All components of type 74 LS 374 are allowed to write data to the bus at a certain point in time Of. Components IC1, IC2, IC3, IC4 of type 74LS374 are decoders Component A of type 74 LS139 selects the IC which is allowed to write data to the bus Only one of the components of type 74 LS 374 is allowed to write data to the bus at a certain point in time All components of type 74 LS 374 are allowed to write data to the bus at a certain point in time g. Components IC1, IC2, IC3, IC4 of type 74LS374 are registers Component A of type 74 LS139 selects the IC which is allowed to write data to the bus Only one of the components of type 74 LS 374 is allowed to write data to the bus at a certain point in time All components of type 74 LS 374 are allowed to read data from the bus at a certain point in time O h. None of these is correct
