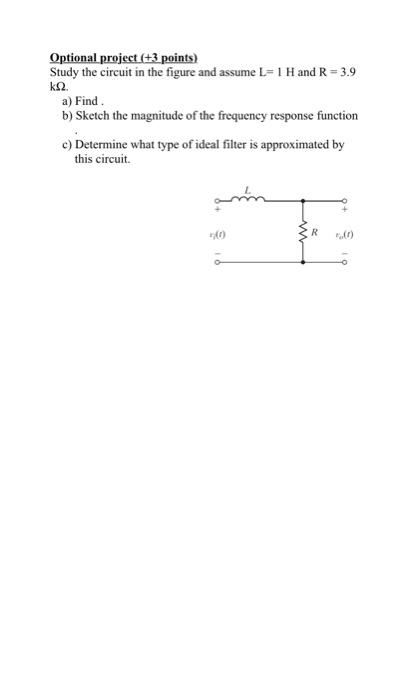

Optional project (+3 points) Study the circuit in the figure and assume L= 1 H and R = 3.9 ΚΩ. a) Find. b) Sketch the magnitude of the frequency response function c) Determine what type of ideal filter is approximated by this circuit. +(0) R %(1)
