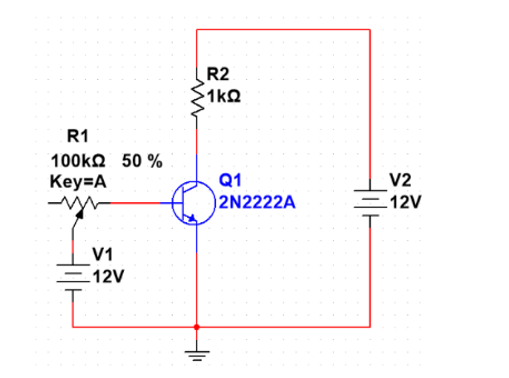

1. Assemble the circuit of figure 1.
2. Calculate the resistor R1 so that the Emitter CollectorVoltage is 6V. Check your calculations with the circuit. Write downthe value:
Write down your calculations for the base and collectorcurrents, measure them, record and compare. ib (Calculated): ib(measured): ic (calculated): ic (measured):
3. Calculate the resistance R1 for the transistor to go intosaturation. Check your calculations with the circuit. Write downthe value:
Write down your calculations for the base and collectorcurrents, measure them, record and compare. ib (Calculated): ib(measured): ic (calculated): ic (measured):
5. Calculate the value of the maximum resistance that keeps thetransistor in saturation
(present calculations)
