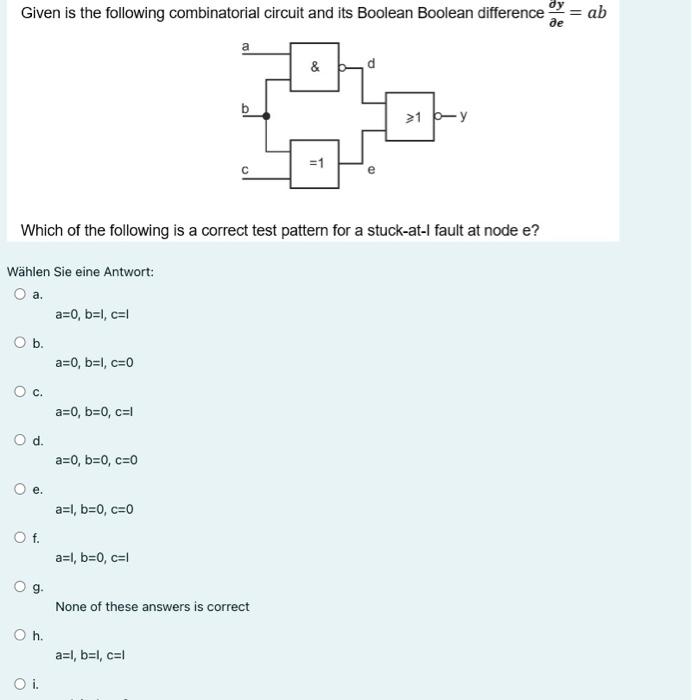

Given is the following combinatorial circuit and its Boolean Boolean difference Il ab де ch & & >16-y =1 e Which of the

[answerhappygod]

1 (27.99 KiB) Viewed 45 times

Given is the following combinatorial circuit and its Boolean Boolean difference Il ab де ch & & >16-y =1 e Which of the following is a correct test pattern for a stuck-at-l fault at node e? Wählen Sie eine Antwort: a=0,b=l, c=1 Ob. a=0,b=l, c=0 C. a=0,b=0, C=1 d. a=0,b=0, c=0 0 e. a=l, b=0, C=0 Of. a=l, b=0, C=1 None of these answers is correct Oh. a=l, b=l, C=1 Oi.
