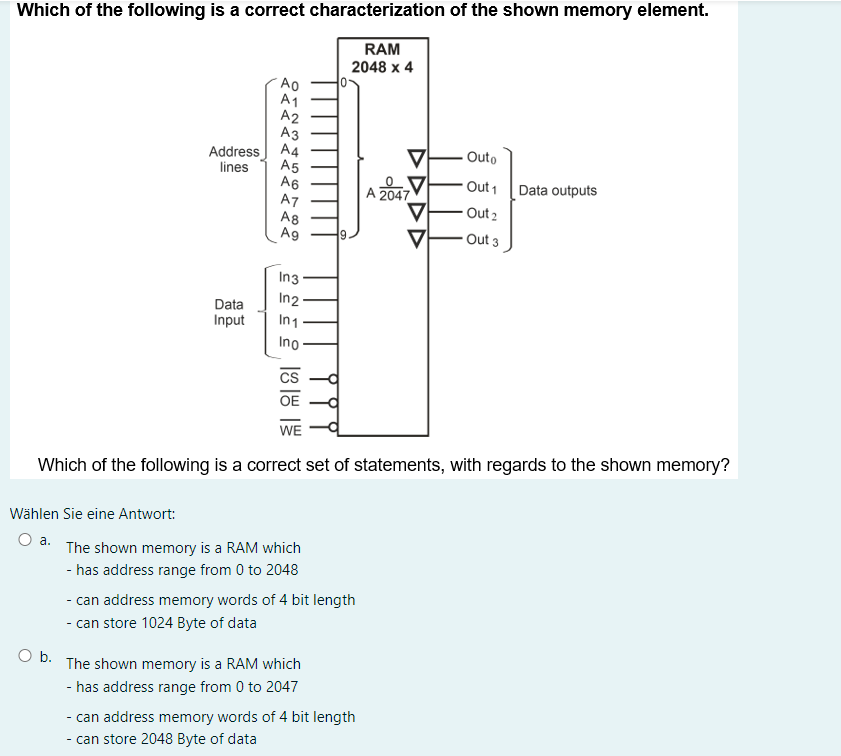

Which of the following is a correct characterization of the shown memory element. RAM 2048 x 4 AO A1 A2 А3 Address A4 V lines A5 A6 A7 A8 Ag A 2047 Outo -Out 1 Data outputs -Out 2 v -Out 3 Data Input In3 In2 In 1 Ino 제 OE WE Which of the following is a correct set of statements, with regards to the shown memory? Wählen Sie eine Antwort: O a. The shown memory is a RAM which - has address range from 0 to 2048 - can address memory words of 4 bit length - can store 1024 Byte of data Ob. The shown memory is a RAM which - has address range from 0 to 2047 - can address memory words of 4 bit length - can store 2048 Byte of data
O c. The shown memory is a RAM which - integrates a row and a column decoder - can address memory words of 4 bit length - can store 2048 Byte of data O d. The shown memory is a RAM which - has address range from 0 to 2048 - can address memory words of 4 bit length - can store 2048 bit of data O e. None of these is correct Of. The shown memory is a RAM which - has address range from 0 to 2047 - can address memory words of 4 bit length - can store 1024 Byte of data Og. The shown memory is a RAM which - has address range from 0 to 2047 - can address memory words of 4 bit length - can store 2047 Byte of data Oh. The shown memory is a RAM which - has address range from 0 to 2047 - can address memory words of 4 bit length - can store 2048 bit of data
