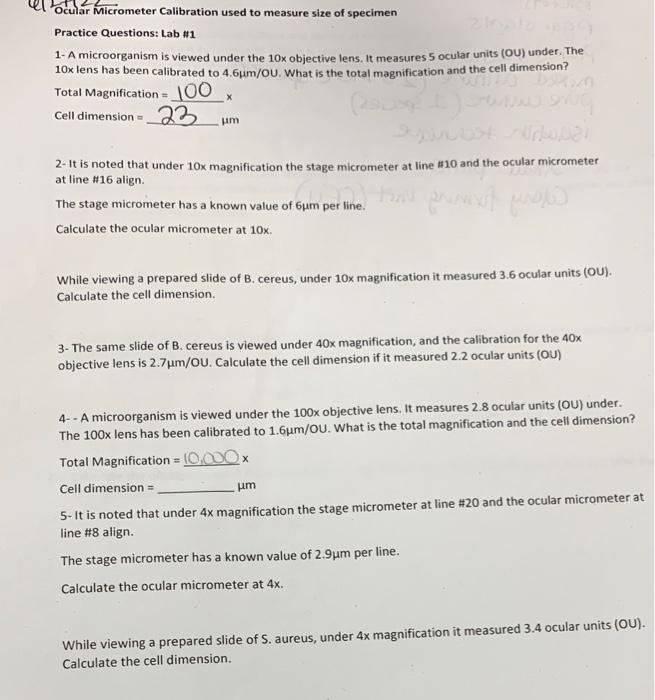

Ocular Micrometer Calibration used to measure size of specimen Practice Questions: Lab #1 1-A microorganism is viewed un

[answerhappygod]

Ocular Micrometer Calibration Used To Measure Size Of Specimen Practice Questions Lab 1 1 A Microorganism Is Viewed Un 1 (55.83 KiB) Viewed 67 times

Ocular Micrometer Calibration used to measure size of specimen Practice Questions: Lab #1 1-A microorganism is viewed under the 10x objective lens. It measures 5 ocular units (OU) under. The 10x lens has been calibrated to 4.6μm/OU. What is the total magnification and the cell dimension? Total Magnification = 100 Cell dimension = 23 μm Synost Nikouai 2- It is noted that under 10x magnification the stage micrometer at line #10 and the ocular micrometer at line #16 align. 6μm per line. toms pramot fingto The stage micrometer has a known value of 6μm per line. Calculate the ocular micrometer at 10x. While viewing a prepared slide of B. cereus, under 10x magnification it measured 3.6 ocular units (OU). Calculate the cell dimension. 3- The same slide of B. cereus is viewed under 40x magnification, and the calibration for the 40x objective lens is 2.7μm/OU. Calculate the cell dimension if it measured 2.2 ocular units (OU) 4- - A microorganism is viewed under the 100x objective lens. It measures 2.8 ocular units (OU) under. The 100x lens has been calibrated to 1.6μm/OU. What is the total magnification and the cell dimension? Total Magnification = (0,000x Cell dimension = μm 5- It is noted that under 4x magnification the stage micrometer at line #20 and the ocular micrometer at line #8 align. The stage micrometer has a known value of 2.9μm per line. Calculate the ocular micrometer at 4x. While viewing a prepared slide of S. aureus, under 4x magnification it measured 3.4 ocular units (OU). Calculate the cell dimension.
