Problem #3: The OCC of a DC sunt generator running at 1000 rpm is as follows: OC voltage (V) Field current (A) 52.5 1 10

Post by answerhappygod »

Problem 3 The Occ Of A Dc Sunt Generator Running At 1000 Rpm Is As Follows Oc Voltage V Field Current A 52 5 1 10 1
Problem 3 The Occ Of A Dc Sunt Generator Running At 1000 Rpm Is As Follows Oc Voltage V Field Current A 52 5 1 10 1 (22.68 KiB) Viewed 45 times

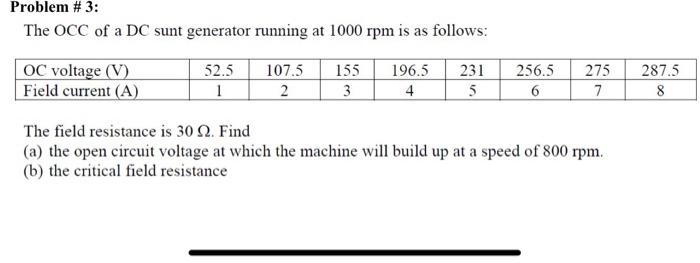

Problem #3: The OCC of a DC sunt generator running at 1000 rpm is as follows: OC voltage (V) Field current (A) 52.5 1 107.5 2 155 3 196.5 4 231 5 256.5 6 275 7 287.5 8 The field resistance is 30 2. Find (a) the open circuit voltage at which the machine will build up at a speed of 800 rpm. (b) the critical field resistance
