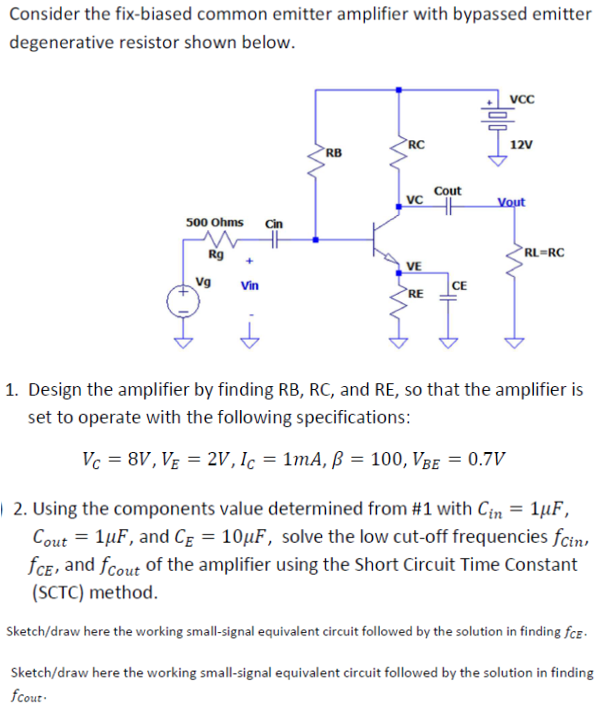

Consider the fix-biased common emitter amplifier with bypassed emitter degenerative resistor shown below. vec 亭 RC 12V R

[answerhappygod]

1 (186.76 KiB) Viewed 36 times

Consider the fix-biased common emitter amplifier with bypassed emitter degenerative resistor shown below. vec 亭 RC 12V RB Cout VC HE Vout 500 Ohms Cin Rg RLERC + VE Vg Vin CE RE 1. Design the amplifier by finding RB, RC, and RE, so that the amplifier is set to operate with the following specifications: Vc = 8V, VE = 2V, 1c = 1mA, B = 100, VBE = 0.7V | 2. Using the components value determined from #1 with Cin = 1uF, Cout = 1uF, and Cg = 10uF, solve the low cut-off frequencies fcin, fce, and fcout of the amplifier using the Short Circuit Time Constant (SCTC) method. Sketch/draw here the working small-signal equivalent circuit followed by the solution in finding fce Sketch/draw here the working small-signal equivalent circuit followed by the solution in finding fcout
