67. A turbine is located 100 m below the surface of a lake. The discharge pipe has an elevation of 5 m from the turbine

Post by answerhappygod »

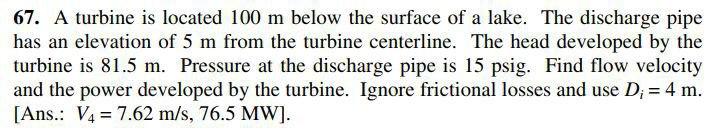

67 A Turbine Is Located 100 M Below The Surface Of A Lake The Discharge Pipe Has An Elevation Of 5 M From The Turbine 1
67 A Turbine Is Located 100 M Below The Surface Of A Lake The Discharge Pipe Has An Elevation Of 5 M From The Turbine 1 (25.69 KiB) Viewed 41 times
67. A turbine is located 100 m below the surface of a lake. The discharge pipe has an elevation of 5 m from the turbine centerline. The head developed by the turbine is 81.5 m. Pressure at the discharge pipe is 15 psig. Find flow velocity and the power developed by the turbine. Ignore frictional losses and use D; = 4 m. [Ans.: V4 = 7.62 m/s, 76.5 MW).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
