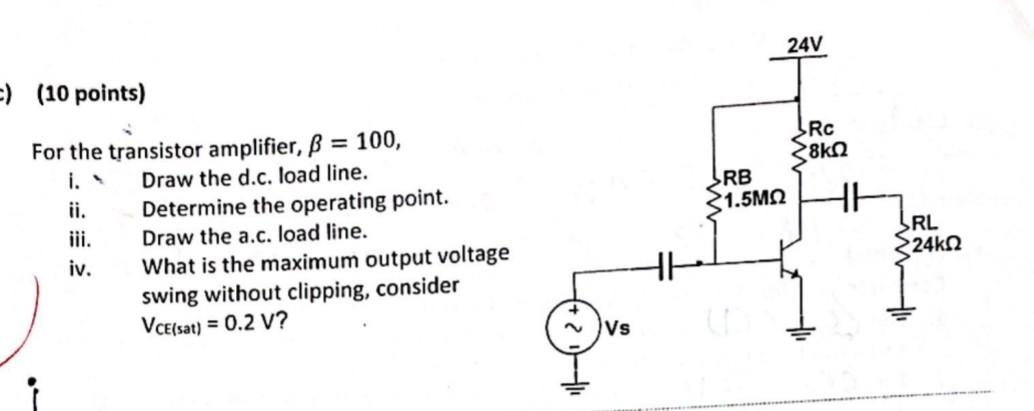

24V (10 points) = RC 8kΩ SRB 31.5M2 For the transistor amplifier, ß = 100, Draw the d.c. load line. ii. Determine the operating point. iii. Draw the a.c. load line. iv. What is the maximum output voltage swing without clipping, consider VCE(sat) = 0.2 v? SRL 24k12 Vs i
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
(10 points) = RC 8kΩ SRB 31.5M2 For the transistor amplifier, ß = 100, Draw the d.c. load line. ii. Determine the operating point. iii. Draw the a.c. load line. iv. What is the maximum output voltage swing without clipping, consider VCE(sat) = 0.2 v? SRL 24k12 Vs i
