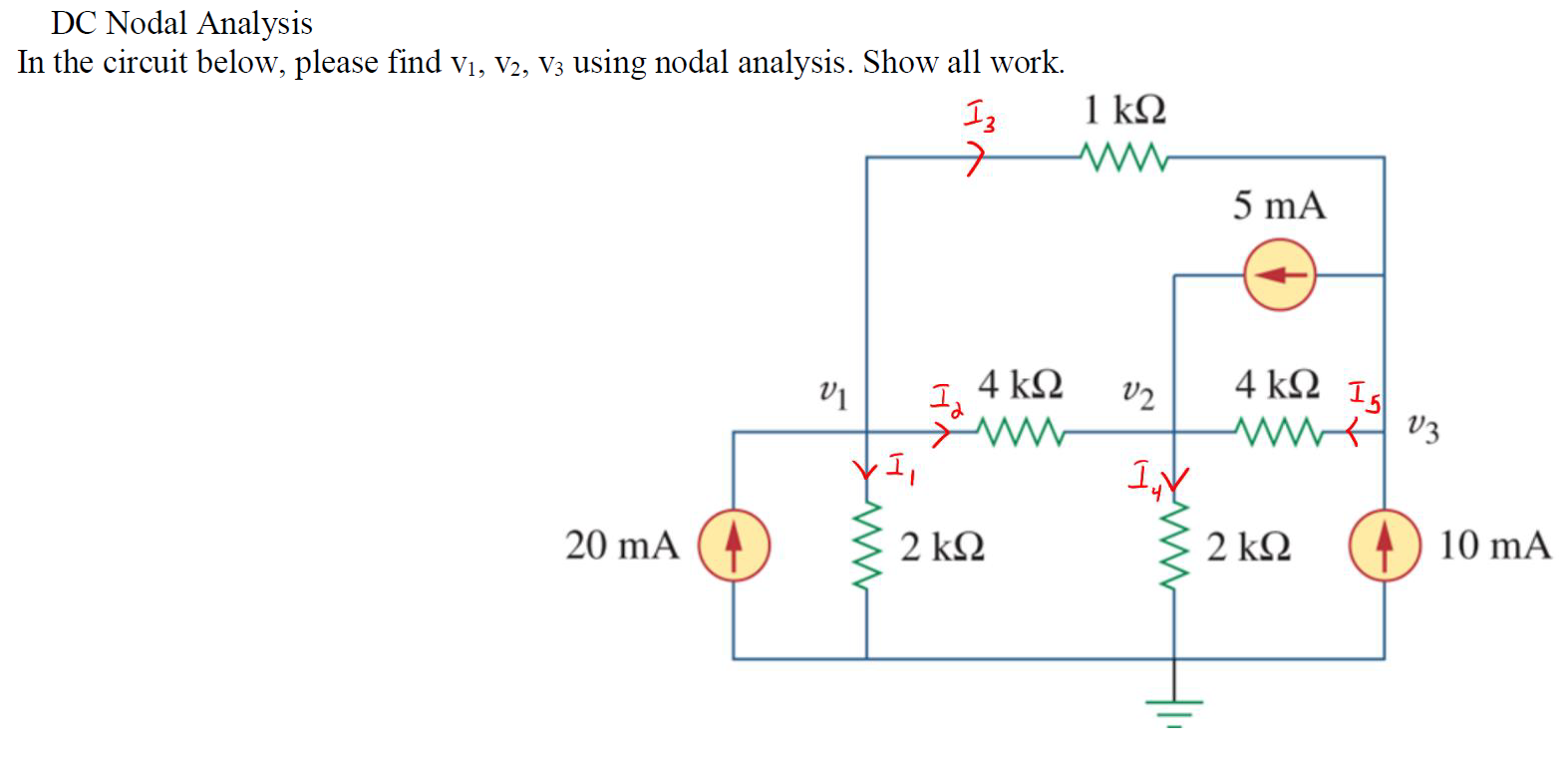

DC Nodal Analysis In the circuit below, please find V1, V2, V3 using nodal analysis. Show all work. 1, 1 ΚΩ Η MW 5 mA 4
