Question 1 (50%) In Fig. Q1, bus 1 is the slack bus with V1 = 1.02/0° pu. Assuming the initial voltage at the load bus t

[answerhappygod]

Question 1 50 In Fig Q1 Bus 1 Is The Slack Bus With V1 1 02 0 Pu Assuming The Initial Voltage At The Load Bus T 1 (68.53 KiB) Viewed 31 times

please answer (ii) & (iii)

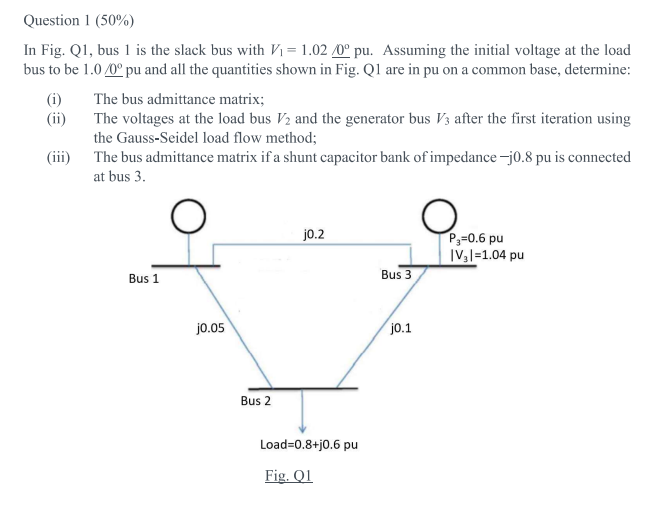

Question 1 (50%) In Fig. Q1, bus 1 is the slack bus with V1 = 1.02/0° pu. Assuming the initial voltage at the load bus to be 1.0 /0° pu and all the quantities shown in Fig. Q1 are in pu on a common base, determine: (i) The bus admittance matrix; (ii) The voltages at the load bus V2 and the generator bus V3 after the first iteration using the Gauss-Seidel load flow method; (iii) The bus admittance matrix if a shunt capacitor bank of impedance -j0.8 pu is connected at bus 3. O j0.2 P=0.6 pu 1V21=1.04 pu Bus 1 Bus 3 30.05 10.1 Bus 2 Load=0.8+j0.6 pu Fig. 21
