A logic gate switches in Sns and has a triangular shoot through current with a peak value of 8mA. Estimate the value of

Post by answerhappygod »

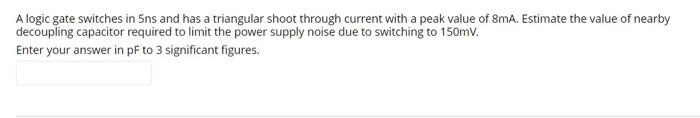

A Logic Gate Switches In Sns And Has A Triangular Shoot Through Current With A Peak Value Of 8ma Estimate The Value Of 1
A Logic Gate Switches In Sns And Has A Triangular Shoot Through Current With A Peak Value Of 8ma Estimate The Value Of 1 (10.51 KiB) Viewed 51 times
A logic gate switches in Sns and has a triangular shoot through current with a peak value of 8mA. Estimate the value of nearby decoupling capacitor required to limit the power supply noise due to switching to 150mv. Enter your answer in pF to 3 significant figures.
