With the following building parameters: D 350,000 SF 10 FLOORS 35,000 SF PER FLOOR 7 OFFICE FLOORS 2 TRADING FLOORS 1 LO

[answerhappygod]

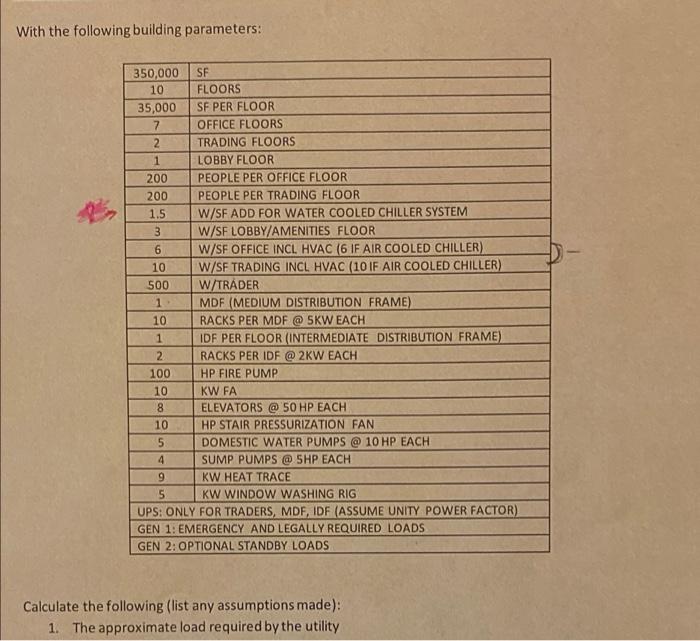

With The Following Building Parameters D 350 000 Sf 10 Floors 35 000 Sf Per Floor 7 Office Floors 2 Trading Floors 1 Lo 1 (68.3 KiB) Viewed 27 times

With the following building parameters: D 350,000 SF 10 FLOORS 35,000 SF PER FLOOR 7 OFFICE FLOORS 2 TRADING FLOORS 1 LOBBY FLOOR 200 PEOPLE PER OFFICE FLOOR 200 PEOPLE PER TRADING FLOOR 1.5 W/SF ADD FOR WATER COOLED CHILLER SYSTEM 3 W/SF LOBBY/AMENITIES FLOOR 6 W/SF OFFICE INCL. HVAC (6 IF AIR COOLED CHILLER) 10 W/SF TRADING INCL HVAC (10 IF AIR COOLED CHILLER) 500 W/TRADER 1 MDF (MEDIUM DISTRIBUTION FRAME) 10 RACKS PER MDF @ SKW EACH 1 IDF PER FLOOR (INTERMEDIATE DISTRIBUTION FRAME) 2 RACKS PER IDF @ 2KW EACH 100 HP FIRE PUMP 10 KW FA 8 ELEVATORS @50 HP EACH 10 HP STAIR PRESSURIZATION FAN 5 DOMESTIC WATER PUMPS @ 10 HP EACH 4 SUMP PUMPS @ SHP EACH 9 KW HEAT TRACE 5 KW WINDOW WASHING RIG UPS: ONLY FOR TRADERS, MDF, IDF (ASSUME UNITY POWER FACTOR) GEN 1: EMERGENCY AND LEGALLY REQUIRED LOADS GEN 2:OPTIONAL STANDBY LOADS Calculate the following (list any assumptions made): 1. The approximate load required by the utility
