Consider the circuit in figure with V1 = 5 V y R1 = 4 kΩ, R2 = 2 kΩ, R3 = 6 kΩ, R4 = 1 kΩ. Solve the circuit and find

Post by answerhappygod »

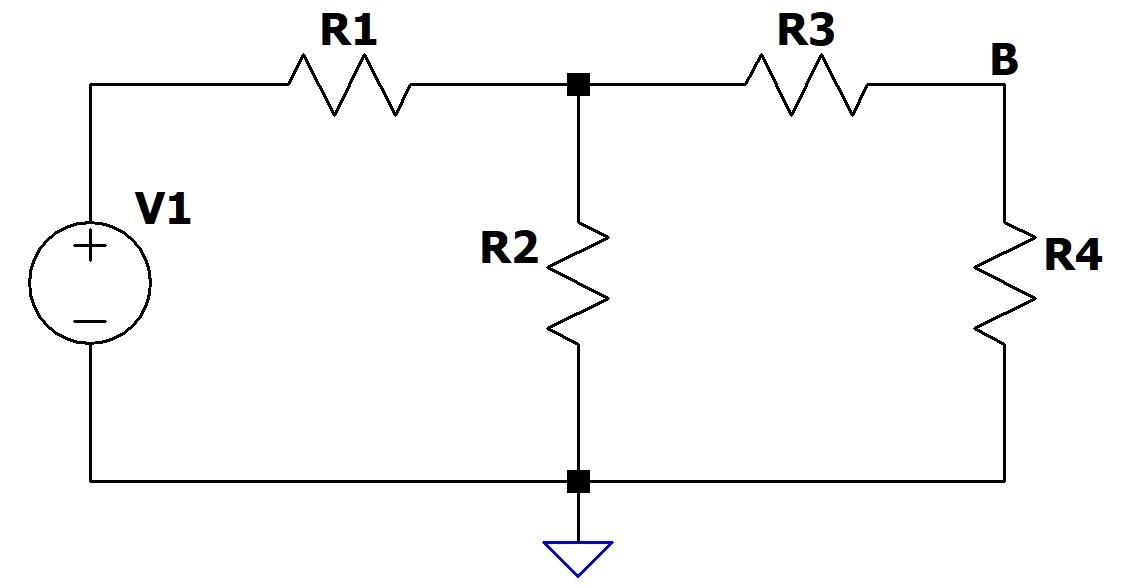

Consider the circuit in figure with V1 = 5 V y R1 = 4 kΩ,
R2 = 2 kΩ, R3 = 6 kΩ, R4 = 1 kΩ. Solve the circuit
and find the voltage drops on all resistors and currents flowing
though each of them.
1
1 (31.59 KiB) Viewed 38 times
R1 R3 B V1 + R2 R4
