A DC/DC boost converter is illustrated in the figure below. The design and operating parameters of the converter are: V=

Post by answerhappygod »

A Dc Dc Boost Converter Is Illustrated In The Figure Below The Design And Operating Parameters Of The Converter Are V 1
A Dc Dc Boost Converter Is Illustrated In The Figure Below The Design And Operating Parameters Of The Converter Are V 1 (68.65 KiB) Viewed 39 times

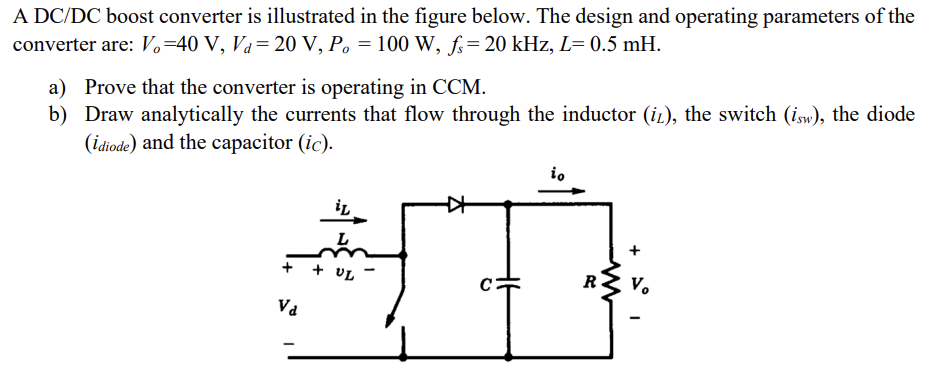

A DC/DC boost converter is illustrated in the figure below. The design and operating parameters of the converter are: V=40 V, Va= 20 V, P. = 100 W, f= 20 kHz, L= 0.5 mH. a) Prove that the converter is operating in CCM. b) Draw analytically the currents that flow through the inductor (ii), the switch (isw), the diode (idiode) and the capacitor (ic). io ii --- L + + UL + Va
