A DC/DC buck converter is illustrated in the figure below. Calculate the minimum value of the inductor (Lmin) in order t

Post by answerhappygod »

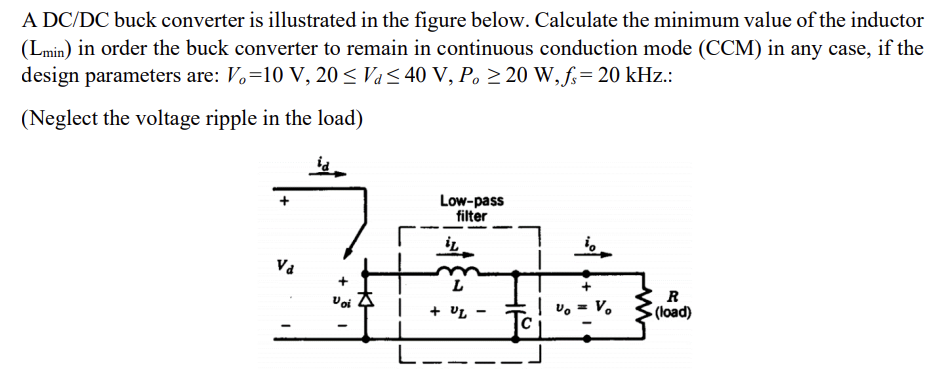

A Dc Dc Buck Converter Is Illustrated In The Figure Below Calculate The Minimum Value Of The Inductor Lmin In Order T 1
A Dc Dc Buck Converter Is Illustrated In The Figure Below Calculate The Minimum Value Of The Inductor Lmin In Order T 1 (86.06 KiB) Viewed 47 times
A DC/DC buck converter is illustrated in the figure below. Calculate the minimum value of the inductor (Lmin) in order the buck converter to remain in continuous conduction mode (CCM) in any case, if the design parameters are: V.=10 V, 20 < V2<40 V, P, > 20 W, fs= 20 kHz.: (Neglect the voltage ripple in the load) Low-pass filter iL bon i. Va Voi L + VL Vo = V. R (load) L-
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
